155Mbps 2X5 SFF MMTransceiver Module
Description
155Mbps 2X5 SFF MMTransceiver Module
Product Description
FTAF-M1303-02Xseries of transceiver modules are the perfect solution for high-speed communication networks. FTAF-M1303-02X series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
FTAF-M1303-02X Small Form Factor (SFF) transceivers comply with the 2X5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FTAF-M1303-02X SFF transceivers support data rates from 100Mbps to 200Mbps.FTAF-M1303-02X SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm wavelength Laser Transmitter
● Up to 5Km on 62.5/125µm MMF
● Single 3.3V power supply
● Standard 2X5 pin footprint (MSA Compliant)
● Operating Temperature Range
0℃ to +70℃
-40℃ to +85℃
● Duplex LC connector
● CML Signal Input / Output
● TTL Signal Detect
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

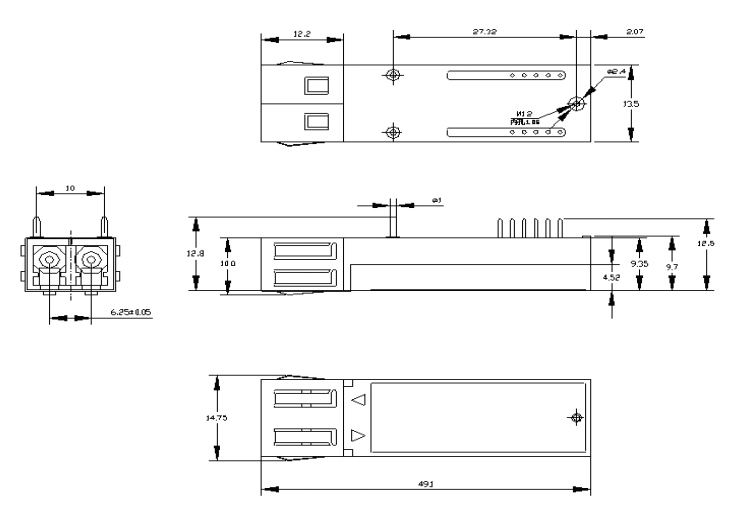

Mechanical Specifications

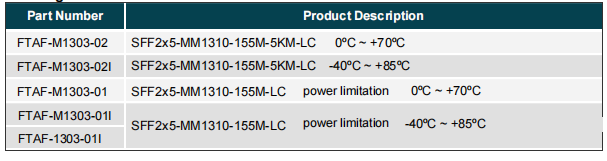

Ordering information
注：本产品有全国产化型号可选
本产品为FTAF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
