18GHz High Dynamic DWDM Analog Optical Transceiver

Features
◆Transmitter using butterfly optical device with TEC
◆Support ITU C-Band，wide range of DWDM wavelengths can be selected
◆Wide operating frequency from 10MHz to 18GHz
◆Flat frequency response： ≤±1.5dB typical
◆High RF input P-1dB：≥27dBm@10GHz
◆Good noise figure：≤48dB@18GHz
◆High dynamic range：SFDR up to 123dB·Hz2/3
◆Automatic optical power control（APC）and auto temperature control（ATC）functions
◆Excellent EMI/EMC design，ROHs compliant and CE certification

Applications
◆Antenna remoting
◆Satellite communication
◆Delay line
◆Distributed antenna system
◆Wideband wireless communication
◆OFDM fiber transmission

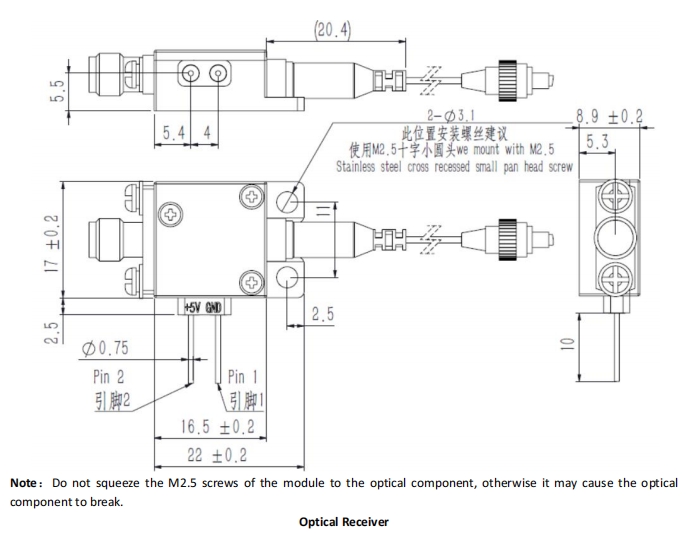

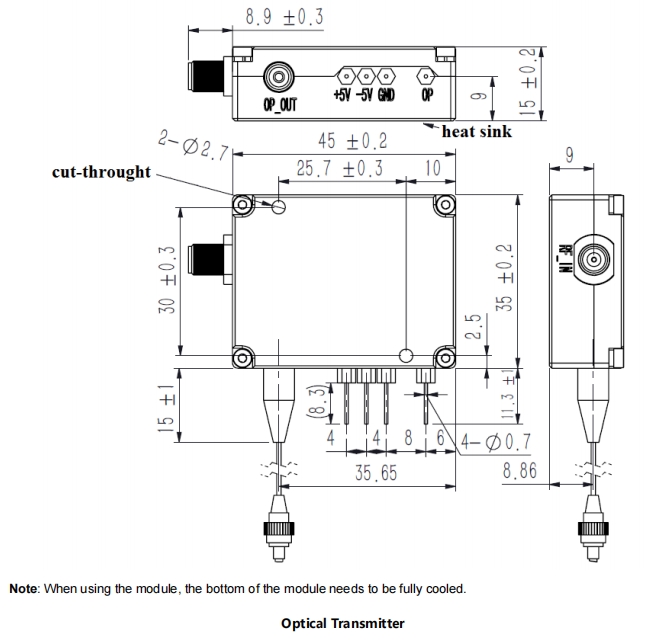

Mechanical (unit: mm)

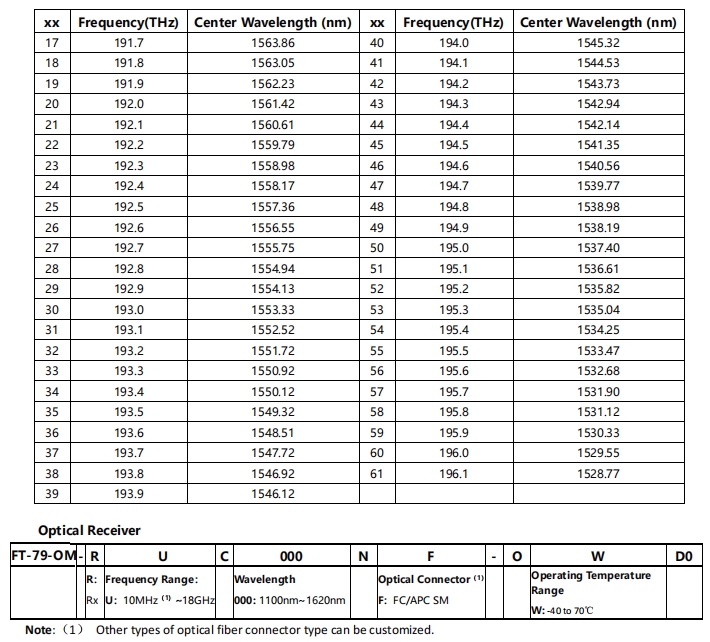

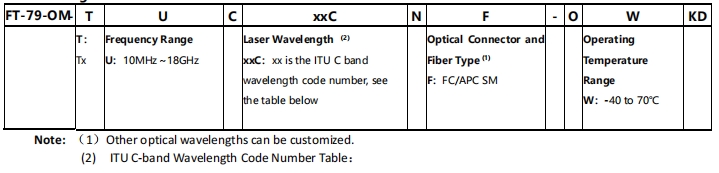

Ordering Information

注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
