标准光模块
20GHz Mini 模拟光接收模块
Description
20GHz Mini 模拟光接收模块
特点
● 小尺寸: 19.8*16.0*9.6mm
● 高响应度:: ≥0.6 @ 1310nm
≥0.7 @ 1550nm
● 宽频率范围: DC~20GHz
● 接收光波长：1260nm ~1620nm
● 内置隔直电容且匹配至 50 Ohm
应用
● 天线拉远
● 卫星定位信号传输
● 宽带无线通信
● 分布式天线系统
● 高速测试及测量系统
● HFC及FTTx视频信号的传输

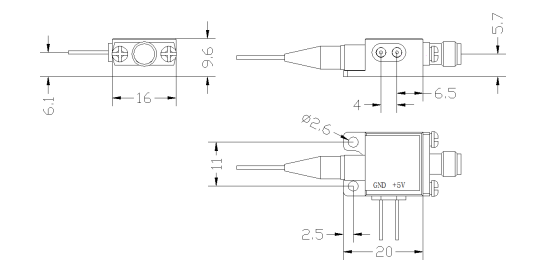

模块尺寸 (unit: mm)
订购信息
|
FTRFR |
- |
0 |
K |
N |
B00 |
F |
A |
- |
W |
000 |
|
光 接 收 模块 |
|
|
|
增益 N: No Gain |
光波长 1100nm ~ 1620nm |
光接口 F: FC/APC |
|
|
温度范围 W: -40 to 70℃ |
注：本产品有全国产化型号可选
本产品为FTRFR系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
