2.5Gb/s CWDM Single-mode SFP Transceiver
Description
2.5Gb/s CWDM Single-mode SFP Transceiver
PRODUCT DESCRIPTION
F-toneNetworks’s FTCS-Cxx24-80DI-GC Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1XX0nm DFB laser and the APD .The module data link up to 80KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
PRODUCT FEATURES
● Up to 2.5Gb/s data links
● DFB laser transmitter and APD receiver
● Up to 80km on 9/125µm SMF
● Hot-pluggable SFP footprint
● Duplex LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Single +3.3V power supply
● Support Digital Diagnostic Monitoring interface
● Compliant with SFF-8472
● Case operating Temperature: -40°C to +85°C
APPLICATIONS
● Switch to Switch Interface
● Gigabit Ethernet
● Switched Backplane Applications
● Router/Server Interface
● Other Optical Links

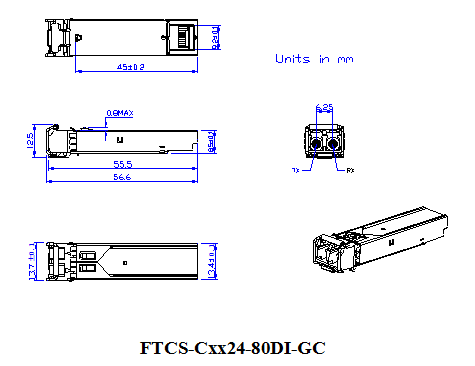

Mechanical Specifications (Unit: mm)
注：本产品有全国产化型号可选
本产品为SFP CWDM系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
