10.3Gb/s SFP+ Transceiver,850nm

F-tone Networks's FTCP-851X-02D Small Form Factor Pluggable (SFP+) transceivers are compatible with SFF-8431,SFF-8432 and support 10G Ethernet SR and 10G Fibre Channel .It is designed for use in 10G-Gigabit multi-rate links up to 300m of OM3 . Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.

Product Features
● Duplex LC connector
● Hot-pluggable SFP footprint
● Uncooled 850nm VCSEL laser
● RoHS compliant and Lead Free
● Distance up to 300m on 50/125um MMF
● Metal enclosure for lower EMI
● Built-in dual CDR
● Low power dissipation <1.0W
● Commercial and industrial operating
● temperature optional
● SFP MSA SFF-8472 SFF-8431 SFF-8432 Compliant

Applications
● 10GBASE-SR/SW
● 10G Fibre Channel

Mechanical Specifications
F-tone Networks's Small Form Factor Pluggable (SFP+) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA) , dimensions are in mm.

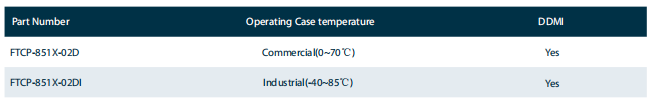

Product Selection

注：本产品有全国产化型号可选

本产品为SFP+系列，仅展示部分参数，如有需要，请联系我们。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
