2.5Gbps CWDM SFP+ Transceiver
Description
2.5Gbps CWDM SFP+ Transceiver
FEATURES
● 18 Wavelength CWDM Cooled DML Transmitter
● Single 3.3V Power Supply
● SMF links up to 40km
● Digital diagnostic monitor compatible with SFF-8472
● Compliant with SFP MSA
● Receiver Loss of Signal Output
● Operating case temperature:
FTCS-Cxx24-40D : 0 ℃to 70℃
FTCS-Cxx24-40DI : -40 ℃to 85℃
APPLICATIONS
● CWDM optic fiber transmission system

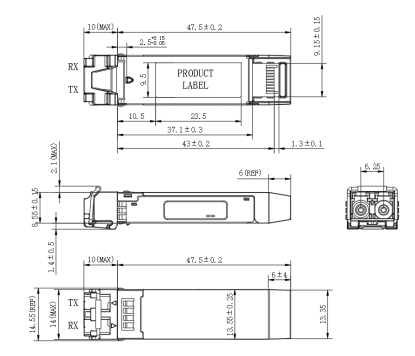

Mechanical Specifications (Unit: mm)
Ordering Information
|
P/No. |
Wavelength (nm) |
Temp. (℃) |
TX Power (dBm) |
RX Sens (dBm) |
Package |
Bit Rate (Gb/s) |
Volt. (V) |
|
FTCS-C2724-40D |
1270CWDM |
0 ~70 |
-3 to +2 |
-23 |
LC |
2.5 |
3.3 |
|
FTCS-C2924-40D |
1290CWDM |
||||||
|
FTCS-C3124-40D |
1310CWDM |
||||||
|
FTCS-C3324-40D |
1330CWDM |
||||||
|
FTCS-C3524-40D |
1350CWDM |
||||||
|
FTCS-C3724-40D |
1370CWDM |
||||||
|
FTCS-C3924-40D |
1390CWDM |
||||||
|
FTCS-C4124-40D |
1410CWDM |
||||||
|
FTCS-C4324-40D |
1430CWDM |
||||||
|
FTCS-C4524-40D |
1450CWDM |
||||||
|
FTCS-C4724-40D |
1470CWDM |
||||||
|
FTCS-C4924-40D |
1490CWDM |
||||||
|
FTCS-C5124-40D |
1510CWDM |
||||||
|
FTCS-C5324-40D |
1530CWDM |
||||||
|
FTCS-C5524-40D |
1550CWDM |
||||||
|
FTCS-C5724-40D |
1570CWDM |
||||||
|
FTCS-C5924-40D |
1590CWDM |
||||||
|
FTCS-C6124-40D |
1610CWDM |
||||||
|
FTCS-C2724-40DI |
1270CWDM |
-40 ~85 |
|||||
|
FTCS-C2924-40DI |
1290CWDM |
||||||
|
FTCS-C3124-40DI |
1310CWDM |
||||||
|
FTCS-C3324-40DI |
1330CWDM |
||||||
|
FTCS-C3524-40DI |
1350CWDM |
||||||
|
FTCS-C3724-40DI |
1370CWDM |
||||||
|
FTCS-C3924-40DI |
1390CWDM |
||||||
|
FTCS-C4124-40DI |
1410CWDM |
||||||
|
FTCS-C4324-40DI |
1430CWDM |
||||||
|
FTCS-C4524-40DI |
1450CWDM |
||||||
|
FTCS-C4724-40DI |
1470CWDM |
||||||
|
FTCS-C4924-40DI |
1490CWDM |
||||||
|
FTCS-C5124-40DI |
1510CWDM |
||||||
|
FTCS-C5324-40DI |
1530CWDM |
||||||
|
FTCS-C5524-40DI |
1550CWDM |
||||||
|
FTCS-C5724-40DI |
1570CWDM |
||||||
|
FTCS-C5924-40DI |
1590CWDM |
||||||
|
FTCS-C6124-40DI |
1610CWDM |
注：本产品有全国产化型号可选
本产品为SFP+ CWDM系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
