4GHz Mini Analog Optical Transceiver with Fiber

Features
● Small size
● Flat frequency response
● Low power consumption
● Excellent EMI/EMC design
● Automatic optical power control
● High dynamic input and output range
● Wide operating frequency from 10MHz to 4GHz

Applications
● WiMAX / 4G / 5G
● Mobile backhaul
● GPS signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

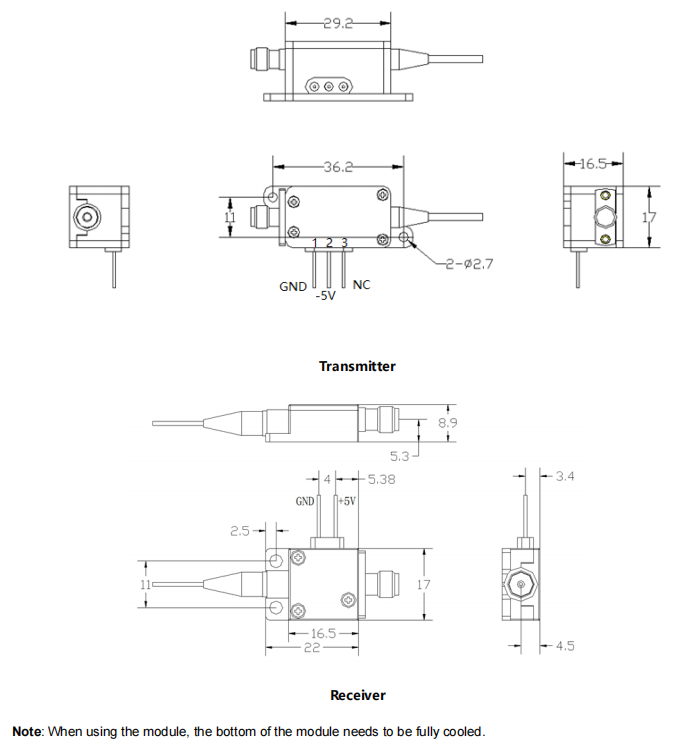

Mechanical (unit: mm)

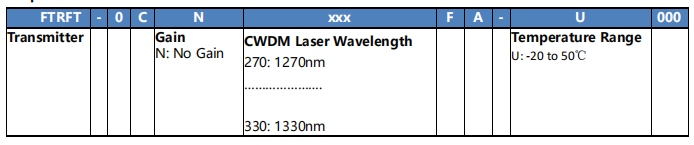

Ordering Information
Optical Transmitter

Optical Receiver

注：本产品有全国产化型号可选

本产品为FTRFT系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
