3Gbps Video SFP Transceiver (10Km)
Description
3Gbps Video SFP Transceiver (10Km)
FEATURES
● Support Video pathological pattern for SD-SDI,HD-SDI,3G-SDI.
● Distance up to 10 km for 3G-SDI
● 1310DFB transmitter
● Single 3.3V Power Supply
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic functions available through the I2C interface
● RoHS-6 Compliant
● Hot Pluggable
● Operating Temperature
FTCS-133G-10D: 0℃~+70℃
FTCS-133G-10DI : -40℃~+85℃
APPLICATIONS
● High-density Video Routers

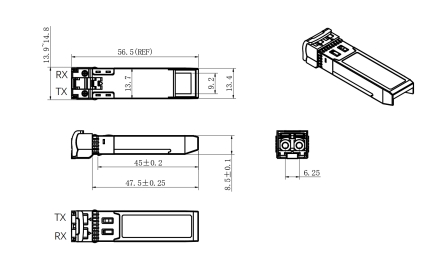

Mechanical Dimensions
NOTE:
1.Unspecified tolerance: ± 0.25mm
2.The Outline Specification is for reference only, and the shape may be slightly changed in the later stage, but the size is basically unchanged.
Ordering Information
|
P/No. |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power(dBm) |
RX Sens(dBm) |
Temp.(℃) |
|
FTCS-133G-10D |
LC |
3000 |
10 |
1310DFB |
3.3 |
-5 to 0 |
-18 |
0 ~70 |
|
FTCS-133G-10DI |
LC |
3000 |
10 |
1310DFB |
3.3 |
-5 to 0 |
-18 |
-40~85 |
注：本产品有全国产化型号可选
本产品为Video SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
