4.25G 850nm MINISFF双纤双向LC插拔光模块
产品特征
● 纯国产零部件
● 高可靠、全金属外壳、抗振动设计
● 紧凑的结构设计,超小模块尺寸
● 可插拔标准LC光纤连接器接口
● 每通道工作速率可达4.25Gbps
● 传输距离可达150m@4.25Gbps,50/125 um MMF光纤
● 单路发射光纤通道,内置850nm波长光发射组件
● 单路接收光纤通道,内置850nm波长光接收组件
● 遵循sff-8472的数字诊断功能
● 3.3V单电源供电
● 工作温度范围 : -55℃~+85℃
产品应用
● 以太网、Sonet/SDH、交换机等数字光纤通信系统

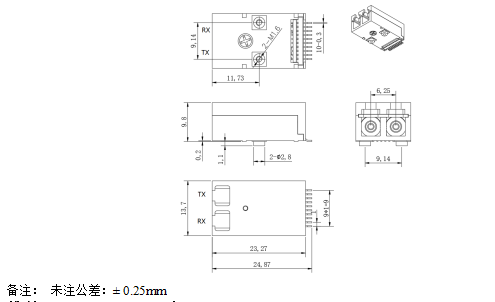

产品尺寸
订购信息
产品型号 |
接口
|
速率 (Gb/s) |
距离 (m) |
波长 (nm) |
电压 (V) |
发射功率 (dBm) |
接收灵敏度 (dBm) |
工作温度 (℃) |
FTRS-8542-02M-GCI |
LC |
4.25 |
150 |
850 |
3.3 |
-8 to 0 |
-15 |
-55~85 |
本产品为FTRS系列,仅展示部分参数,如有需要,请联系我们。
注:本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
