400G 100m QSFP-DD SR8 Transceiver
Description
400G 100m QSFP-DD SR8 Transceiver
Descriptions
FTQD-4H-SR8 QSFP-DD SR8 transceivers are designed for use in 400Gb/s links over multimode fiber. They integrates eight channel VCSEL array and eight channel PIN photodiode array, the module can operate at 425Gb/s up to 70m using OM3 or 100m using OM4 and OM5 MMF. They are compliant with the QSFP-DD MSA and IEEE 802.3cd 400GBASE-SR8.FTQD-4H-SR8 are compliant with RoHS.
Product Features
● Compliant with IEEE Std 802.3cd，200G BASE SR4 Ethernet
● Compliant with QSFP-DD MSA
● Compliant with QSFP-DD Management interface specifications
● MPO16 APC/MPO24 UPC Male connector receptacle
● 8 channels 850nm VCSEL array
● 8 channels PIN photo detector array
● Up to 425Gb/s data rates
● Single +3.3V power supply
● Commercial operating temperature:0℃ to +70℃
● Up to 70m on OM3 MMF and 100m on OM4 and OM5 MMF
● RoHS Compliant
Applications
● 400G BASE-SR8 Ethernet
● Data Center

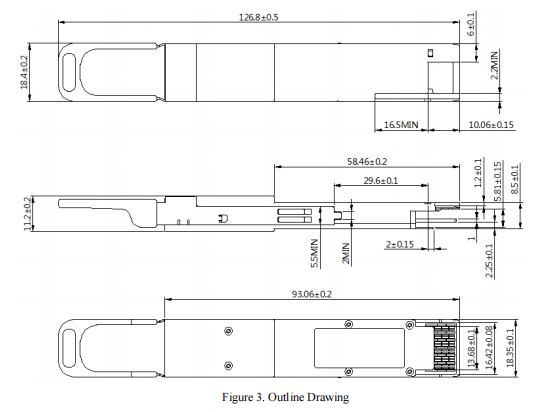

Mechanical Specifications
本产品为FT-XM系列，仅展示部分参数，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
