400G QSFP-DD PSM8 10km Optical Transceiver Module

Description
The F-tone Networks FTQD-4H-PSMDR4-10 is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 2x200 Gigabit Ethernet Applications. This transceiver is a high performance module for short-range multi-lane data communication and interconnection applications. It integrates eight datalanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 10km using G.652 SMF with KP-FEC. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. Theoptical interface uses a MPO16/MTP16 APC connector . The Common Management Interface Specification (CMIS) for QSFP DD modules, This module incorporates F-tone Networks provencircuit and EML technology to provide reliable long life, high performance, and consistent service.

Features
● 8 channels full-duplex transceiver modules
● Transmission data rate up to 53Gbps per channel
● 8x53Gbps PAM4 transmitter and PAM4 receiver
● 8 channels1310nm uncooled EML
● 8 channels PIN photo detector array
● Internal CDR circuits on both receiver and transmitter channels
● Power consumption <11W
● Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
● Maximum link length of 2km G.652 SMF with KP-FEC
● MPO16 APC connector receptacle
● Built-in digital diagnostic functions
● Operating case temperature 0℃ to +70℃
● 3.3V power supply voltage
● RoHS compliant(lead free)

Applications
● IEEE 802.3bs 200GBASE-DR4

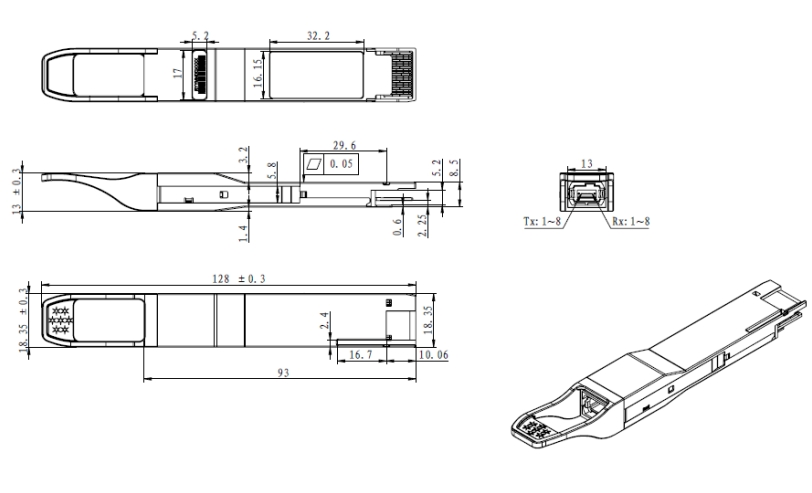

Mechanical DimensionsOrdering information

本产品为FT-Y1系列，仅展示部分参数，如有需要，请联系我们。
注：本产品有全国产化型号可选

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
