40G QSFP+ ER4 40km Optical Transceiver (FTCQ-4X-ER4xx)
Description
Description
F-tone Networks’s 40GE QSFP+ ER4 40km Optical Transceiver modules are designed for using in 40 Gigabit Ethernet and 4X10G OTN client interfaces over single mode fiber. They are compliant with the QSFP+ MSA, IEEE 802.3bm 40GBASE-ER4, and OTU3 requirements. The F-tone Networks technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package
Features
● Hot-pluggable QSFP form factor
● Supports 39.8 Gb/s to 44.6 Gb/s
● 18.5 dB link insertion loss budget
● Single 3.3V power supply
● Maximum link length of 40km on Single Mode Fiber (SMF)
● Uncooled 4x10Gb/s CWDM transmitter
● XLPPI electrical interface
● Duplex LC receptacles
● 3.5W maximum power dissipation
● RoHS-6 compliant (lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 40GBASE-ER4 40G Ethernet
● OTU3, OTU3e1, OTU3e2

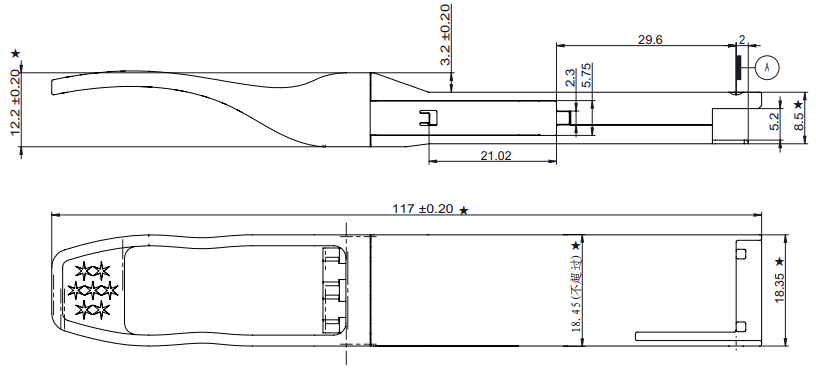

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCQ-4X-ER4 |
40GE/OTU3 QSFP ER4, 40km on single-mode fiber,0ºC ~ +70ºC |
|
FTCQ-4X-ER4I |
40GE/OTU3 QSFP ER4, 40km on single-mode fiber,-40ºC ~ +85ºC |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
