40G QSFP+ to 4X 10G SFP+ breakout Active Optical Cables(FTCQ-4X-4CS-Oxxx)
Description
Description
F-tone Networks QSFP to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers.
For typical applications, users can install this splitter Active Optical cable between an available QSFP port on their 40Gbps rated switch and feed up to four upstream 10GbE-SFP+ enabled switches. Each QSFP-SFP+ splitter Active Optical cable features a single QSFP connector (SFF-8436) rated for 40Gbps on one end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s, on the other.
Features
● Electrical interface compliant to QSFP+ connector (SFF-8436) and SFP+ connectors (SFF-8431)
● Hot Pluggable
● 850nm VCSEL transmitter, PIN photo-detector receiver
● Up to 100m on OM3 MMF
● All-metal housing for superior EMI performance
● RoHS compliant (lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 40 Gigabit Ethernet
● Fibre Channel Applications
● InfiniBand QDR, SDR, DDR
● High-performance computing clusters
● Servers, switches, storage and host card adapters

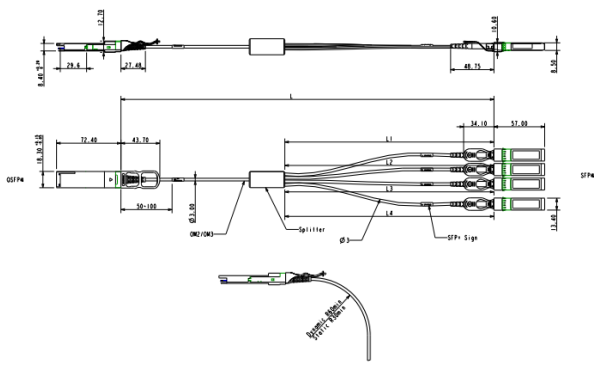

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTCQ-4X-4CS-Oxxx |
40G QSFP to 4x 10G SFP+ Active Optical Cable,0ºC ~ +70ºC |
|
FTCQ-4X-4CS-OxxxI |
40G QSFP to 4x 10G SFP+ Active Optical Cable,-40ºC ~ +85ºC |
|
xxx :001~100,1~100 Length in meters. (OM3 fiber is available) |
|
|
Further details are available from any F-tone Networks sales representative. |
|
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
