Description
F-tone Networks QSFP+ to 8 x LC Connector Breakout Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.
F-tone Networks QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 40G QSFP+ port of a switch on one end and to four 10G SFP+ Transceivers of a switch on the other end.

Features
● Full duplex 4 channel 850nm parallel active optical cable
● Transmission data rate up to 10.3Gbit/s per channel
● SFF-8436 QSFP+ compliant
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 4 channels 850nm VCSEL array
● 4 channels PIN photo detector array
● Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
● Low power consumption
● Housing isolated from connector ground
● 3.3V power supply voltage
● RoHS 6 compliant
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● Infiniband transmission at 4ch SDR, DDR and QDR
● 40GBASE-SR4 40G Ethernet
● Data Centers

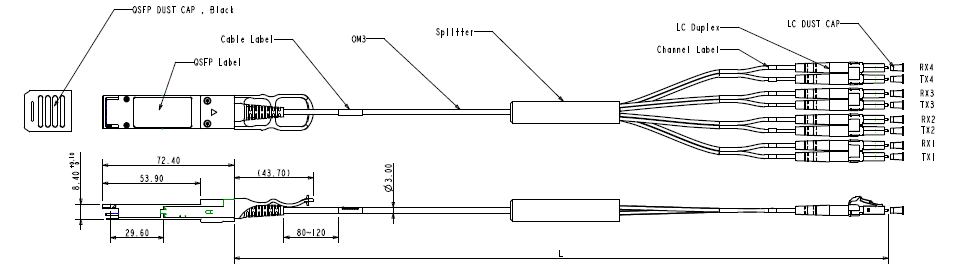

Mechanical Dimensions

Ordering information

本产品为25G~400G高速光模块系列，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
