52Mbps TTL SFP低速率光模块
Description
52Mbps TTL SFP低速率光模块
产品描述
F-tone Networks的FTCS-13L3-20DI系列光模块是低速通信网络的完美解决方案。这些光模块支持高达52Mbps的数据速率。该模块完全符合小型可插拔（SFP）收发器多源协议（MSA）。这些光模块为系统设计者提供了RS232/RS485/RS422插座式光纤传输和其他多模光纤网络的光模块。
产品特点
● 1310FP激光二极管发射器
● 9/125μm SMF上可达20公里
● 3.3V电源
● LC双工光接口
● LVTTL输入/输出和LVTTL信号检测
● 1级激光国际安全标准IEC 825
● 工作情况温度范围（标准：0至+70℃）或（扩展：-40°C至+85°C）
应用
● RS232/RS485/RS422插座光纤传输
● 其他光学链路

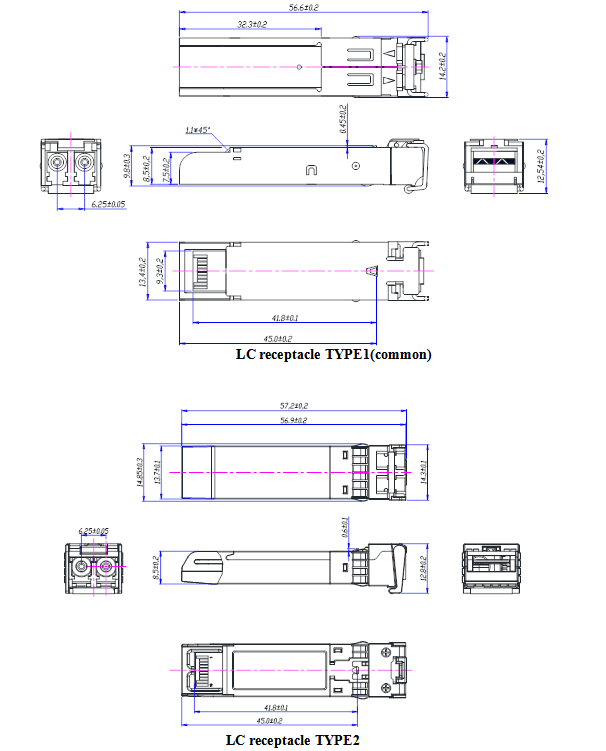

模块外形图（单位：mm）
订购信息
|
产品型号 |
类型 |
波长(nm) |
传输距离(Km) |
|
FTCS-13L3-20DI |
SM |
1310 |
20 |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
