标准光模块
200GBASE-DR4 QSFP56 500m 光模块
Description
200GBASE-DR4 QSFP56 500m 光模块
描述
F-tone Networks的FTQ5-2H-DR4 200GE QSFP56光模块设计用于并行单模光纤（1310nm）上的200千兆以太网链路。这些模块可以将4个通道的50Gbps（PAM4）电输入数据转换为4个通道50Gbps（PAM4）光信号，并且还可以将4条通道的50bps（PAM4。它们被设计为在标称波长为1310nm的单模光纤系统上工作。
它们符合QSFP56 MSA和IEEE 802.3 200GBASE DR4和CEI-56G-VSR-PAM4标准。数字诊断功能可通过CMIS4.0规定的I2C接口使用。收发器符合RoHS 2.0标准，符合指令2011/65/EU的无铅要求。
特征
● 可热插拔QSFP56外形尺寸
● 内置200G PAM4 DSP
● 支持212.5Gb/s聚合比特率
● 低功耗<6W
● 商业案例温度范围为0°C至70°C
● 单路3.3V电源
● SMF链路长度可达500米
● 4通道1310nm DML发射器（非制冷）
● 4通道光电探测器阵列接收器
● MPO12/APC连接器插座
● 200GAUI-4电气接口
● 符合CMIS4.0
● I2C管理接口
● 内置数字诊断功能
● 符合RoHS（无铅）
应用
● 200GBASE-DR4以太网（PAM4）
● 数据中心网络

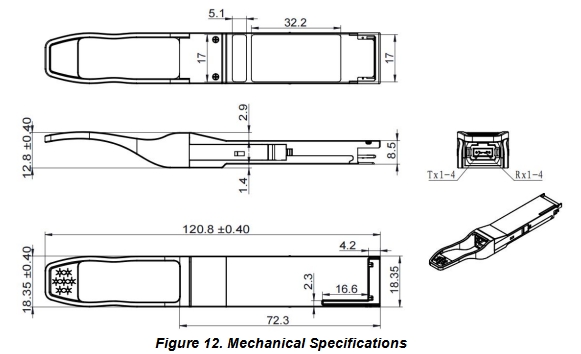

机械尺寸
订购信息
|
产品型号 |
产品描述 |
|
FTQ5-2H-DR4 |
QSFP56，200GBASE-DR4 Transceiver，500m over parallel SMF，PAM4 DSP inside.,0ºC ~ +70ºC |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为QSFP56系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
