622Mb/s SFP 1310nm Multi-Mode Optical Transceiver

Description
F-tone Networks’FTCS-1306-02Dxx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 550m in 50/125um multi-mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Features
● Up to 622Mb/s data links
● 1310nm FP laser transmitter and PIN photo-detector
● Up to 550m on 50/125um MMF
● Duplex LC/UPC type pluggable optical interface
● Hot-pluggable SFP footprint
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS-10 compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472

Applications
● Switch to Switch Interface
● Fast Ethernet
● Switched Backplane Applications
● Router/Server Interface

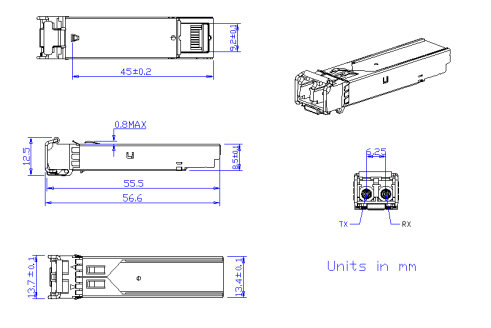

Mechanical Dimensions

Ordering Information

注：本产品有全国产化型号可选

本产品为SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
