6Gbps Single mode MINISFF Pigtail Transceiver (2Km)
Description
6Gbps Single mode MINISFF Pigtail Transceiver (2Km)
FEATURES
● Low Profile Design—8mm max. height
● Surface mount I/O pins for high speed signal integrity
● All metal body, solder or screw mount options
● Industrial Temp range, vibration tolerant design
● 2-Fiber Mini SFF Pigtail Transceiver
● Single mode 1550nm DFB Transmitter
● Single 3.3V Power Supply
● Operating case temperature:
FTMF-1560-02-xx : 0℃~+70℃
FTMF-1560-02I-xx : -40℃~+85℃
APPLICATIONS
● optic fiber transmission system

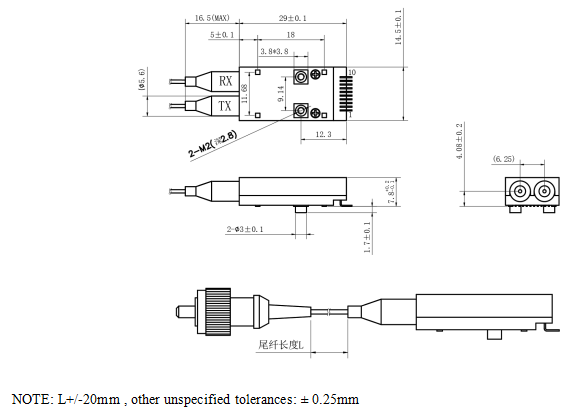

Outline Specification
Ordering Information
|
P/No. |
Package |
Bit Rate(Gb/s) |
Dist.(Km) |
Wavelength(nm) |
TX Power(dBm) |
RXSens(dBm) |
Temp.(℃) |
|
FTMF-1560-02-xx |
Pigtail |
6 |
2 |
1550 |
-5~1 |
-15 |
0 ~70 |
|
FTMF-1560-02I-xx |
Pigtail |
6 |
2 |
1550 |
-5~1 |
-15 |
-40 ~85 |
注：本产品有全国产化型号可选
本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
