800G QSFPDD DR8 500m Silicon Photonics Transceiver Module
Description
800G QSFPDD DR8 500m Silicon Photonics Transceiver Module
Description
The F-tone Networks FTQD-8H-DR8 is a transceiver module designed for 500m optical communication applications, and it is compliant to QSFPDD MSA, IEEE 802.3 protocol. The silicon photonics transceiver is based on a new state-of-the-art silicon photonics (SiPh) platform. It uses SiPh chips that integrate a number of active and passive optoelectronic components, 3D packaging technology and 7nm DSP chips. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Features
● QSFPDD MSA and CMIS compliant
● 8x106.25Gbps(53.125GBd PAM4)electrical interface
● 8x106.25Gbps(53.125GBd PAM4)optics architecture
● Power consumption <18.5W
● Maximum link length of 500m G.652 SMF with KP-FEC
● MPO-16 receptacles
● Built-in digital diagnostic functions
● Operating case temperature 0°C to +70°C
● 3.3V power supply voltage
● RoHS compliant(lead free)
Applications
● 800GBASE-DR8
● Data center network

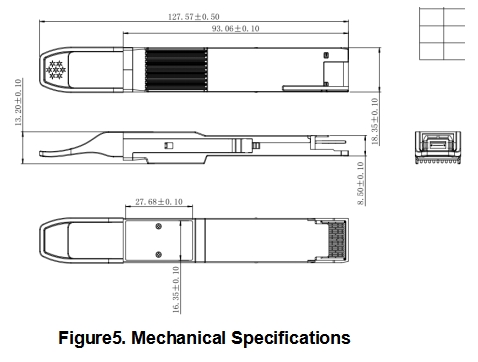

Mechanical Dimension
Ordering information
|
Part Number |
Product Description |
|
FTQD-8H-DR8 |
QSFPDD, 800GBASE-DR8, 500m on Single mode Fiber (SMF),with DSP MPO-16 connector. |
注：本产品有全国产化型号可选
本产品为QSFPDD系列，仅展示部分参数，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
