84Mb/s  单模单收光收发一体模块

特点：
● SC/FC/ST或尾纤型光接口，单模单收光模块
● +3.3V /+5V供电
● 接口电平兼容标准TTL电平和CMOS电平
● 标准1×9管脚封装,引脚配置与 Multisource 协议兼容
● 接收采用平面结构InGaAsP PIN探测器
Feature：
● SC/FC/ST receptacle optical interface and pigtail optical interface
● Single-mode Receipt fibers optical transceiver
● Standard +3.3V/ or +5V Power Supply
● Standard TTL data output with signal detect indication, compatible with CMOS level
● Standard1×9 package
● Receiver has a planner InGaAsP PIN

应用：
●适用于84Mb/s以下速率的光纤传输系统。

参数：Specification

极限值
Absolute Maximum Ratings

管脚定义

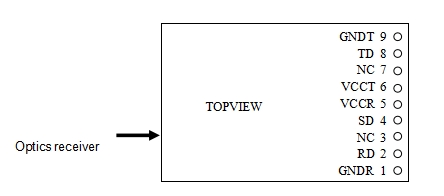

Pin Connections

顶视图 Topview

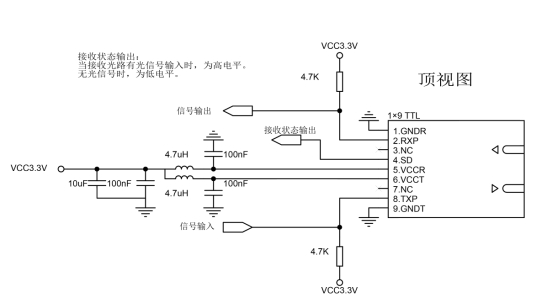

接口电路 Interface Circuit

外形尺寸及接口定义
Dimension and optical interface

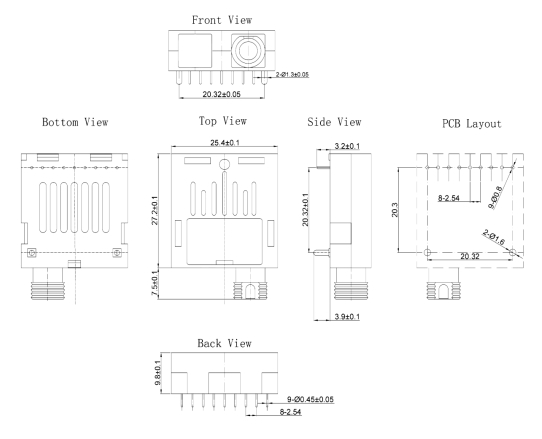

单模单收SC型接口
Receipt fiber SC optical interface

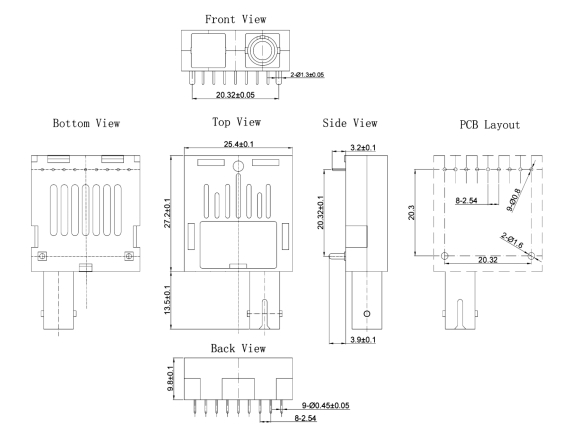

单模单收 FC 型接口（工业级）
Receipt fiber FC optical interface

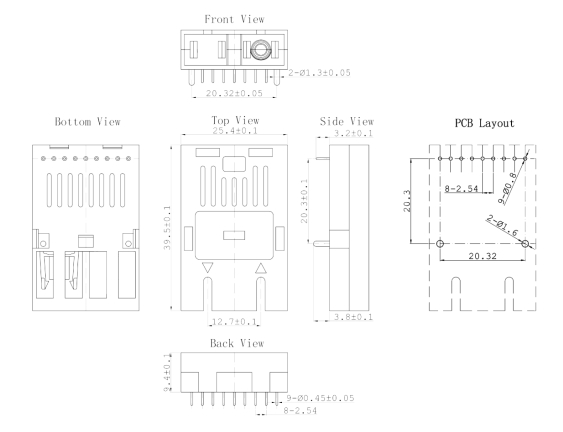

单模单收ST型接口（工业级）
Receipt fiber ST optical interface

选型Ordering information

备注：“GC”，表示全国产。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
