保偏MEMS 可调光衰减器
Description
保偏MEMS 可调光衰减器
Features
● Low IL, Low PDL, Low WDL
● Fast Response
● Compact package
● Bright and dark type available
● Qualified to GR-1221
Applications
● Optical power control/equalization
● Gain tilt control in EDFA
● Receiver protection

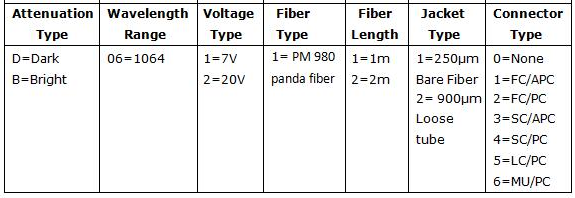

Ordering Information:FT-45-MA
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
