DCF 色散补偿模块
Description
DCF 色散补偿模块
产品特性：
DWDM 系统宽波段色散补偿和极低的残余色散
可实现 C/L 波段 80%-120%斜率补偿
低插入损耗与高的负色数系数 高品质因子
低偏振模色散
性能指标通过 Telcordia GR-2854-core 标准认证
可靠性通过 Telcordia GR-1221-core 标准认证
可提供不同的包装样式及尺寸，连接器类型和跳线长度
新型的色散补偿光纤具有良好的熔接特性
产品应用：
G.652 标准单模光纤骨干和域域通信系统
DWDM 传输系统
SDH 传输系统
CATV 有限电视系统
色散调节

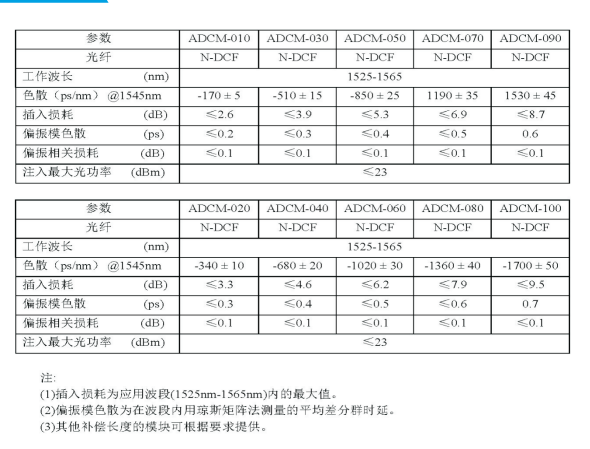

产品指标

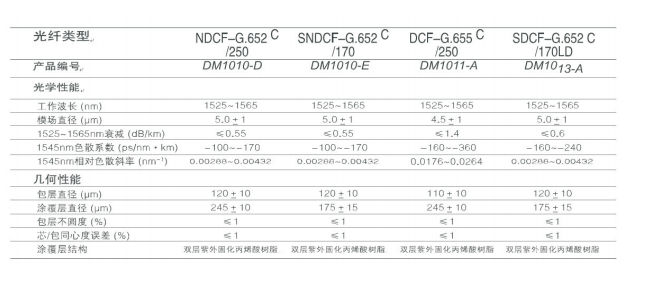

光性能参数
环境特性
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
