标准光模块
单模1310 nm双纤LC接口 工业级
Description
单模1310 nm双纤LC接口 工业级
产品特点
● 支持速率：10.3125Gbps
● 波长1310nm DFB激光器
● 单模9/125µ光纤 传输10KM
● 3.3V 单电源供电
● 双纤LC接口
● 全金属外壳，焊接式安装
● 使用温度范围：工业级温度 -40℃～+85℃
产品应用：
● 数字雷达阵列
● 点对点光纤通讯
● 机器人通讯通信
● 医疗检测通信
● 航天航空通信
● 工业军工通信
● 船舶铁路通信

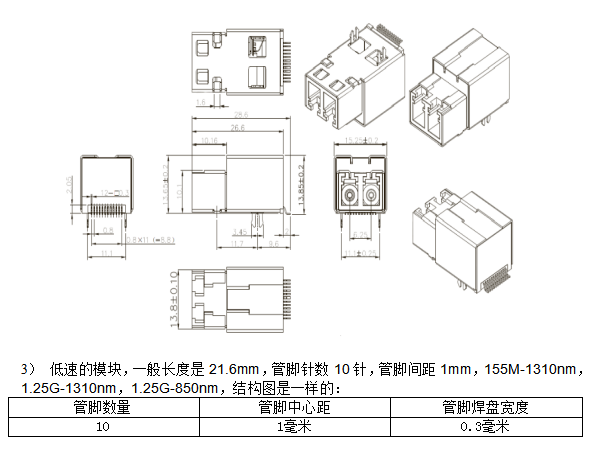

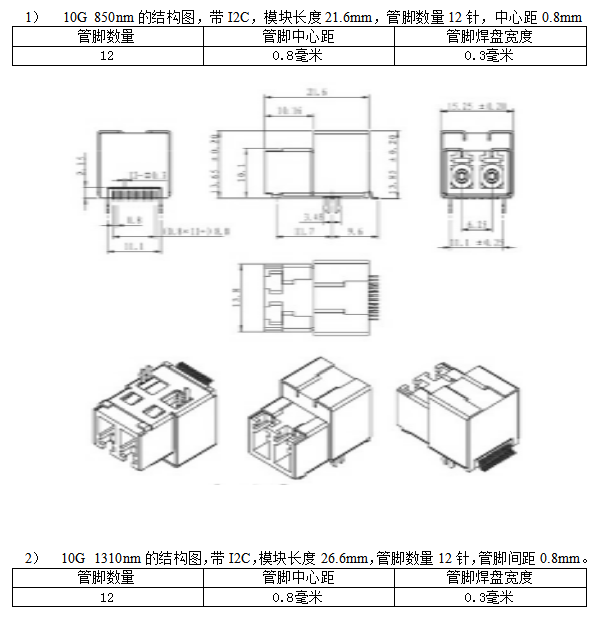

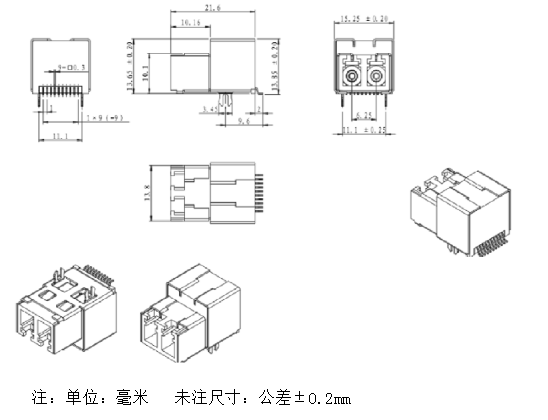

结构尺寸
RJ模块，排针有两种，外壳有两种（10G 1310模块外壳比较大，跟其他不一样），结构图一共三种。 10G模块的排针是一致的，都是带I2C的，为12针，间距0.8mm。三种结构图分别如下：
Ordering information
|
Part Number |
Product Description |
|
FTRJ-131X-10 |
1G~10.3125Gbps RJ Optical Transceiver 10km, 1310nm,0ºC ~ +70ºC |
|
FTRJ-131X-10I |
1G~10.3125Gbps RJ Optical Transceiver 10km, 1310nm, -40ºC ~ +85ºC |
本产品为FTRJ系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
