Description
This product is a 100Gb/s transceiver module designed for optical communication applications compliant with the QSFP MSA,CWDM4 MSA,100G 4WDM4-10 MSA and portions of IEEE P802.3bm standard. The module converts 4 input channels of 25Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in CWDM4 MSA and 4WDM4-10 MSA. The high performance Uncooled CWDM DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links .
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Features
● 4 channels full-duplex transceiver modules
● Transmission data rate up to 26Gbps per channel
● 4 x 26Gb/s DFB-based CWDM uncooled transmitter
● 4 channels PIN ROSA
● Internal CDR circuits on both receiver and transmitter channels
● Non airtight optical engine design
● Qualified under temperature 85°C and humidity 85% @500 hours (the variation of TX≤2.5 dBm, RX≤1.5 dBm)
● Low power consumption <3.5W
● Hot Pluggable QSFP form factor
● Up to reach 10km for G.652 SMF[with KR4 FEC]
● Duplex LC receptacles
● Built-in digital diagnostic functions
● Operating case temperature 0°C to +70°C
● 3.3V power supply voltage
● RoHS 6 compliant(lead free)

Applications
● Data Center Interconnect.
● 100G 4WDM-10 10km reach.
● 100G CWDM4 applications.
● Infiniband EDR interconnects.
● Enterprise networking

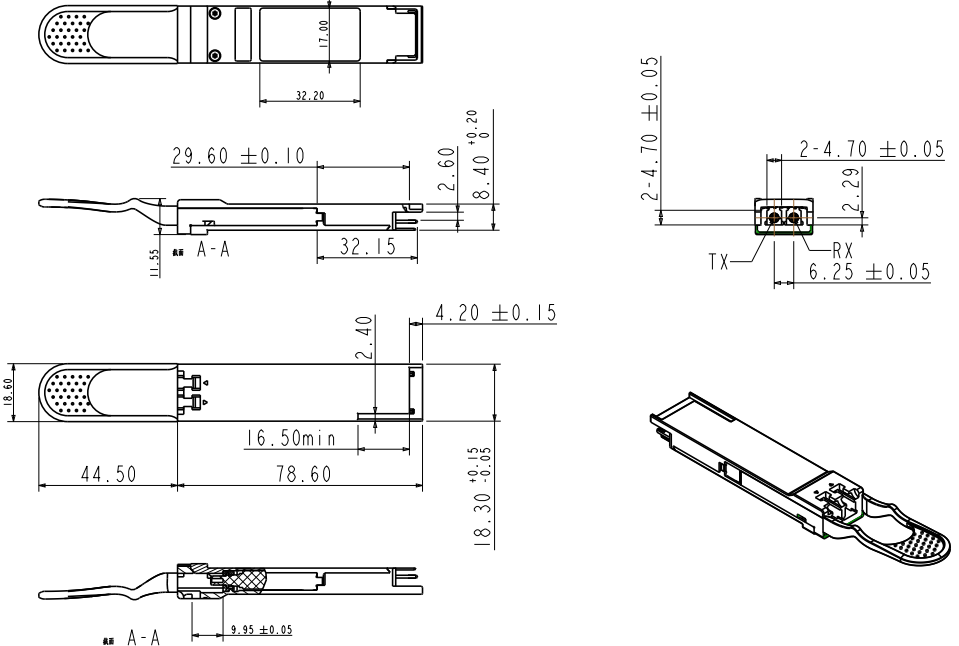

Mechanical Dimensions

Ordering information
