200GBASE-LR4 QSFP56 Optical Transceiver Module
Description
Description
F-tone Networks’s FTQ5-2H-LR4xx 200GE QSFP56 Optical Transceiver modules are designed for use in 200 Gigabit Ethernet links over SMF28 single-mode fiber. They are compliant with the QSFP MSA and with IEEE 802.3bs 200GBASE-LR4 specification. Digital diagnostics functions are available via the I2C interface as specified by ACMIS4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Features
● Hot-pluggable QSFP56 form factor
● Built-in 200G PAM4 DSP
● Supports 212.5Gb/s aggregate bit rates
● Supports 103.1Gb/s aggregate bit rates if requiredNote1
● Maximum power dissipation < 7.5W
● RoHS-6 compliant (lead-free)
● Single 3.3V power supply
● Maximum link length of 10km on SMF
● Cooled 4 channels EA-DFB TOSA
● 4 channels PIN ROSA
● 200GAUI-4 electrical interface
● Compliant with CMIS V4.0 Note1
● I2C management interface
● Built-in digital diagnostic functionality
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3bs 200GBASE-LR4 Ethernet (PAM4)
● 5G Back-haul
● Data center

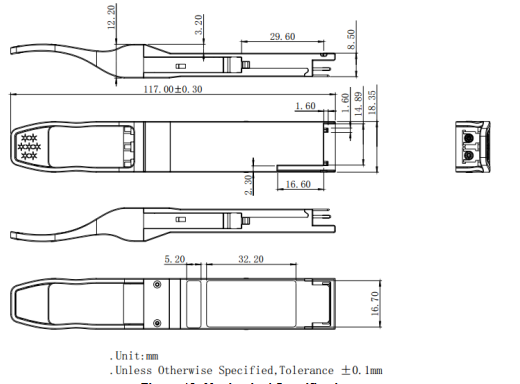

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTQ5-2H-LR4 |
QSFP56, 200GBASE-LR4 Transceiver, 10km over SMF, PAM4 DSP inside. |
|
FTQ5-2H-LR4I |
QSFP56, 200GBASE-LR4 Transceiver, 10km over SMF, PAM4 DSP inside. |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
