200GbE to 2x100GbE (QSFP56 to 2xQSFP56) MMF Active Optical Splitter Cable
Description
Description
F-tone Networks’s FTQ5-2H-2Q5-Oxxx MMF Active Optical Splitter Cable is used in 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber, which provides connectivity between system units with a 200GbE connector on one side and two separate 100GbE connectors on the other two sides. The cable connects data signals from each of the 4 MMF (Multi Mode Fiber) pairs on the single QSFP56 end to the dual pair of each of the QSFP56 multiport ends.
F-tone Networks’s FTQ5-2H-2Q5-Oxxx MMF Active Optical Splitter Cable is compliant with the QSFP-MSA and with 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Features
● SFF-8665 compliant QSFP56 form factor
● 200GbE to 2x100GbE data rate
● 4x 50Gb/s PAM4 modulation
● Supports 103.1Gb/s aggregate bit rates if requiredNote1
● Low power dissipation < 5W (200G End)
● RoHS-6 compliant (lead-free)
● Single 3.3V power supply
● Maximum link length of 70m on OM3 MMF and 100m on OM4 & OM5 MMF
● Uncooled 4 channels 850nm VCSEL array (200G End)
● 4 channels PIN photo detector array (200G End)
● 200GBASE-SR4 and 100GBASE-SR2 compliant
● I2C management interface
● CMIS V4.0 compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● IEEE 802.3cd 200GBASE-SR4 Ethernet (PAM4)

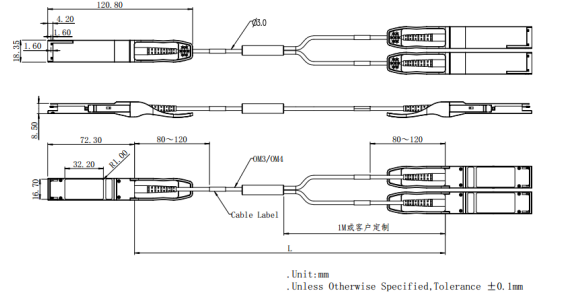

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTQ5-2H-2Q5-Oxxx |
QSFP56, 200GbE to 2x100GbE MMF Active Optical Splitter Cable,0ºC ~ +70ºC |
|
FTQ5-2H-2Q5-OxxxI |
QSFP56, 200GbE to 2x100GbE MMF Active Optical Splitter Cable,-40ºC ~ +85ºC |
|
xxx |
005-5m, 020-20m, 050-50m, 100-100m |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
