Description
The F-tone Networks FTQD-2H-LR8xx is an Eight-Channel, Pluggable, Fiber-Optic QSFP DD LR8 for 2×100 Gigabit Ethernet Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over singlemode fiber systems using LAN-WDM 8 wavelengths. The electrical interface uses a 76 contact edge type connector. The optical interface uses duplex LC connector. This module incorporates F-tone Networks proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

Features
● 8 channels full-duplex transceiver modules
● Transmission data rate up to 26Gbps per channel
● 8 x 26Gb/s DFB-based LAN-WDM Cooling transmitter
● 8 channels PIN ROSA
● Internal CDR circuits on both receiver and transmitter channels
● Support CDR bypass
● Low power consumption <7.5W
● Hot Pluggable QSFP DD form factor and Compliant with CMIS
● Up to 10km reach for G.652 SMF
● Duplex LC receptacles
● Built-in digital diagnostic functions
● 3.3V power supply voltage
● RoHS 6 compliant (lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● IEEE 802.3ba 100GBASE-LR4

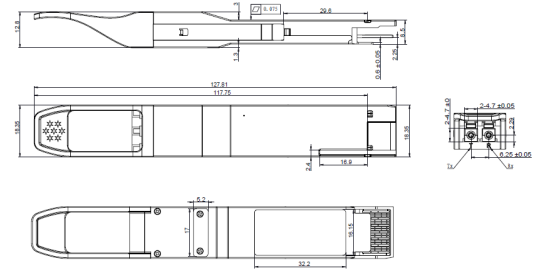

Mechanical Dimensions

Ordering information

本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
