波分复用器
DWDM Modules
Description
DWDM Modules
Key Features
● Low Insertion loss
● Standard ITU channel
● High channel isolation
● Epoxy-free Optical path
● Stable performance
Applications
● DWDM System
● CATV networks

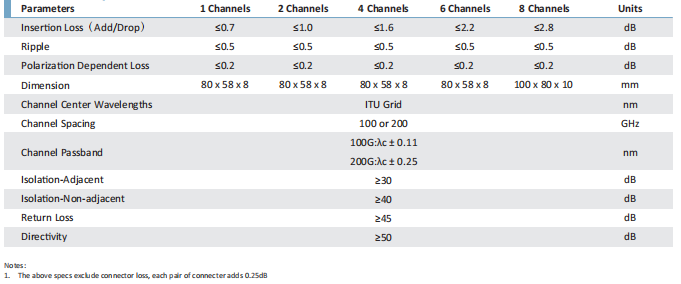

Parameter Specications

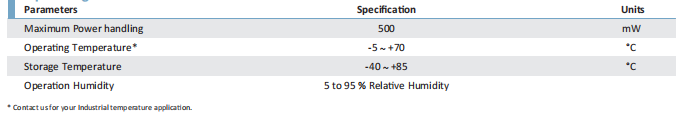

Operating Conditions

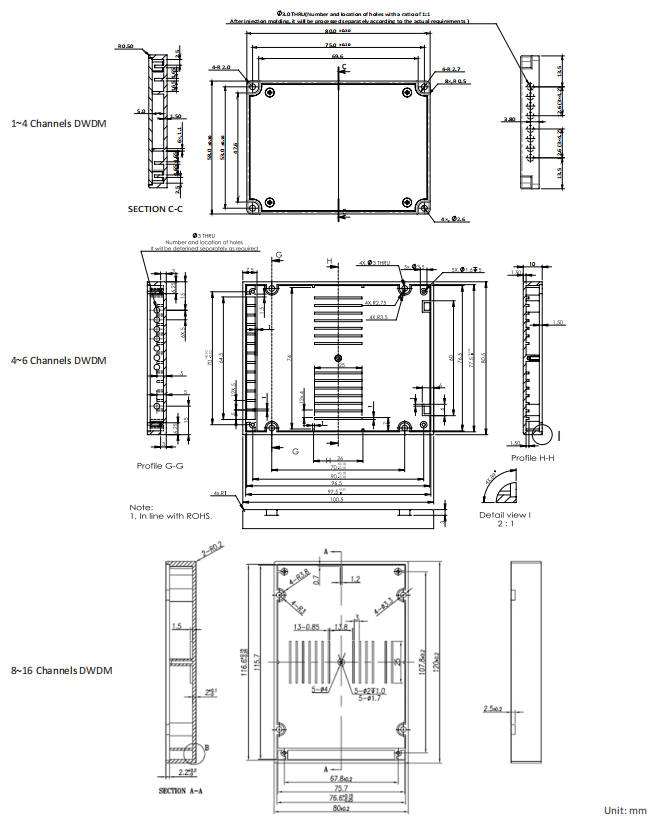

Mechanical Dimensions

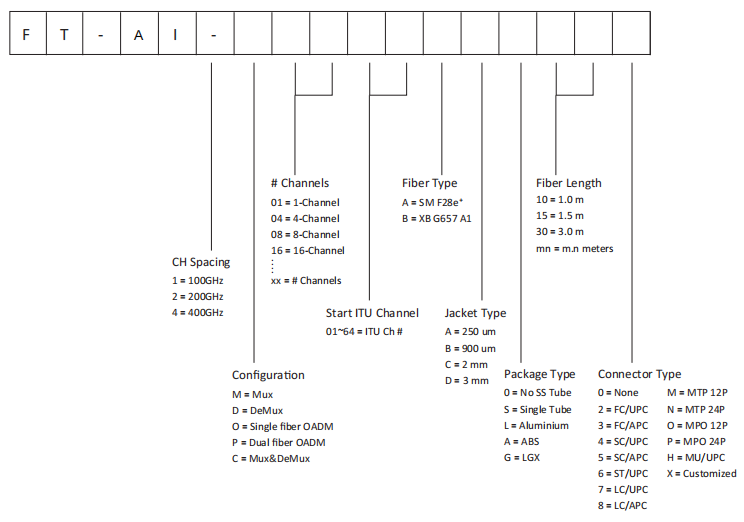

Part Number Scheme: DWDM Modules
注：本产品有全国产化型号可选
本产品为FT-AI系列波分复用器，仅展示部分参数，如有需要，请联系我们。
Important Notice
