16/18-Channel Compact CWDM Module(16/18-CH CCWDM)

Description
F-tone Networks’s compact size Coarse Wavelength Division Multiplexers(Mini CWDM, Compact CWDM, CCWDM), are integrated optical modules using F-tone Networks’s proprietary optical bench platform which can significantly improve optical performance, while also reduce manufacturing cost. Compare to the common standard CWDM module, F-tone Networks's Mini CWDM takes much smaller package size. Much space can be saved in the application and meanwhile the performance and parameters are also better. All F-tone Networks's CWDM modules are Telcordia qualified.(Meet TELCORDIA GR-1221-CORE)

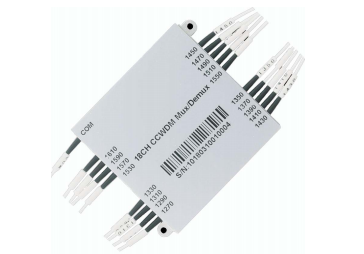

Product picture

Features
● Low Insertion Loss
● Wide Passband
● High Channel Isolation
● High Stability and reliability
● Epoxy free on optical path
● Compact size

Applications:
● Line Monitoring
● WDM Network
● Telecommunication
● Cellular Application
● Fiber Optical Amplifier
● Access Network

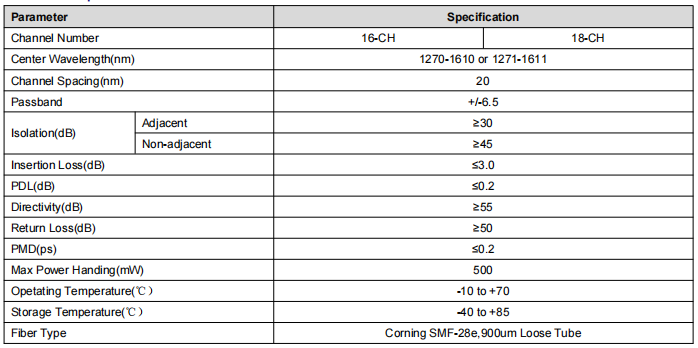

Performance Specifications:

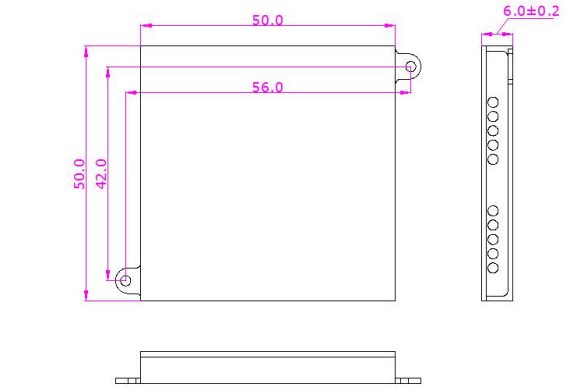

Package Dimension:

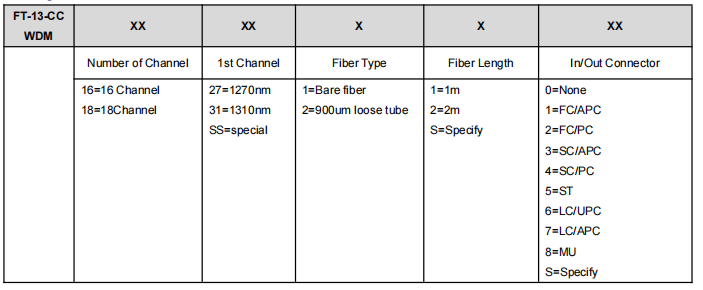

Ordering Information:

注：本产品有全国产化型号可选
本产品为FT-13系列波分复用器，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
