JYSMT系列 微型多芯光缆组件

1、产品外形及尺寸及详细要求

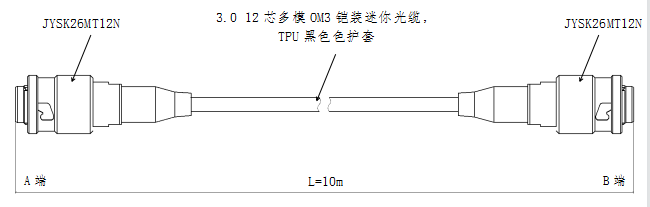

1.1 JYSK26MT12N-JYSK26MT12N-10m （3.0 12芯多模OM3常规迷你缆）

1.1 型号说明：产品A、B端各为1个JYSK26MT12N插头，光缆为3.0 12芯多模OM3铠装迷你光缆，TPU黑色护套，长度10m。
链路损耗：≦0.75+0.75+3.5dB/km*Lm（850nm）

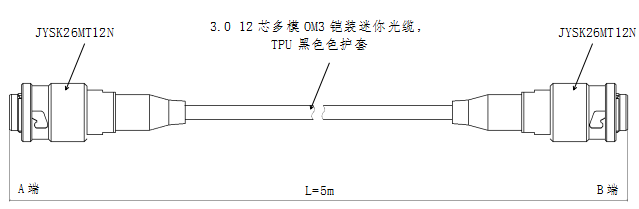

1.2 JYSK26MT12N-JYSK26MT12N-5m （3.0 12芯多模OM3常规迷你缆）
1.2 型号说明：产品A、B端各为1个JYSK26MT12N插头，光缆为3.0 12芯多模OM3铠装迷你光缆，TPU黑色护套，长度5m。
链路损耗：≦0.75+0.75+3.5dB/km*Lm（850nm）

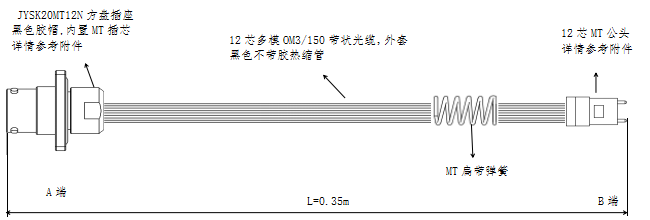

1.3 JYSK20MT12N-MT/DS12-0.35m （12芯多模OM3/150带状光缆）
1.3 型号说明：产品A端各为1个JYSK20MT12N插座，B端为一个12芯MT带导针及弹簧，光缆为12芯多模OM3/150带状光缆，长度0.35m。
链路损耗：≦0.75+0.75+3.5dB/km*Lm（850nm）

1.4：详情参考上图

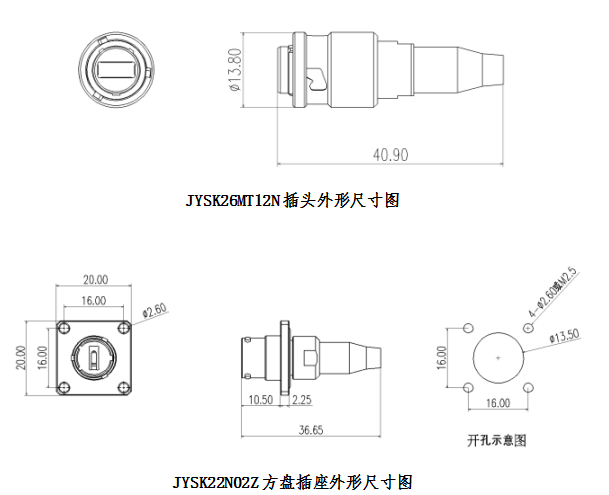

2、插头插座外形尺寸图

3、光缆组件参数

4、光缆参数

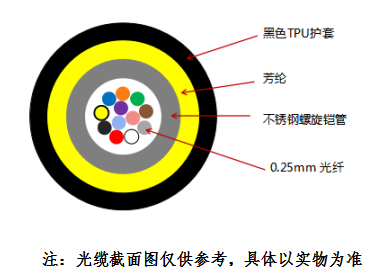

4.1 光缆截面图

4.2 光缆特性

5、包装规范
1、产品独立包装袋包装，每袋1条，标签贴在PE袋左上角
2、随货附发货清单
3、ZLTC标准包装或中性包装

注：本产品有全国产化型号可选
