标准光模块
LC插拔光收发模块
Description
功能概述
● LC可插拔设计,方便动态和灵活的配置数据连接
● 最大支持传输速率达10.0Gbps
● +3.3V单电源供电
● 适应于高速信号完整性的表面贴装引脚
● 更紧凑的结构设计, 超小模块尺寸
● 高可靠，全金属外壳，抗振动设计
● 引脚和安装尺寸全面兼容STRATOS产品
适用范围
主要应用于数字雷达阵列，高可靠、高数据率点对点光纤通信以及信号处理中心高密度信号互联。
主要性能指标
| 中心波长(nm) | 850 | 1310 | ||||||
| 传输速率(Gbps) | 2.5 | 4.25 | 6.25 | 10.3125 | 2.5 | 4.25 | 6.25 | 10.3125 |
| 接收灵敏度(dBm) | ≤-18 | ≤-16 | ≤-14 | ≤-10 | ≤-18 | ≤-16 | ≤-14 | ≤-13 |
| 输出光功率(dBm) | -8～-2 | -5～0 | -5～0 | -5～0 | -8～-2 | -8～-2 | -6～0 | -5～0 |
| 消光比(dB) | ≥8.2 | ≥7 | ≥5 | ≥3 | ≥8.2 | ≥6 | ≥5 | ≥3.5 |
| 电源电压(V) | +3.3V | |||||||
| 工作温度(℃) | -40～+85 | |||||||
订购信息
| 型号 | 传输速率 | 连接器方式 |
| FT-C850M02G | 2.5Gbps | LC插拔 |
| FT-C850M04G | 4.25Gbps | LC插拔 |
| FT-C850M06G | 6.25Gbps | LC插拔 |
| FT-C850M10G | 10.3125 Gbps | LC插拔 |
| FT-C310M02G | 2.5Gbps | LC插拔 |
| FT-C310M04G | 4.25Gbps | LC插拔 |
| FT-C310M06G | 6.25Gbps | LC插拔 |
| FT-C310M10G | 10.3125 Gbps | LC插拔 |
| FT-C850M04GT | 4.25Gbps | LC双发 |
| FT-C850M04GR | 4.25Gbps | LC双发 |

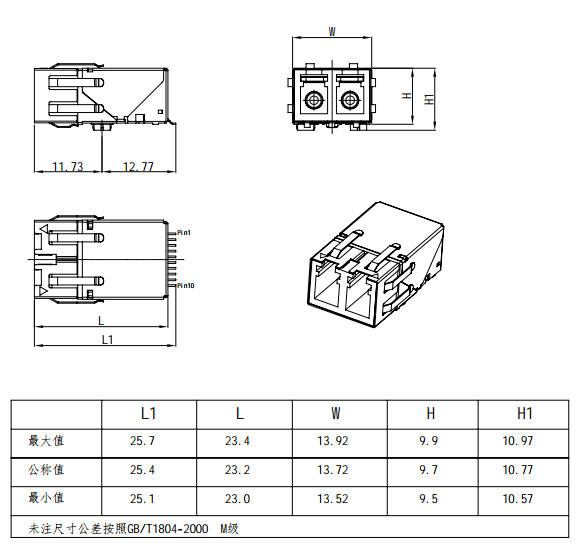

结构尺寸图
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
