波分复用器

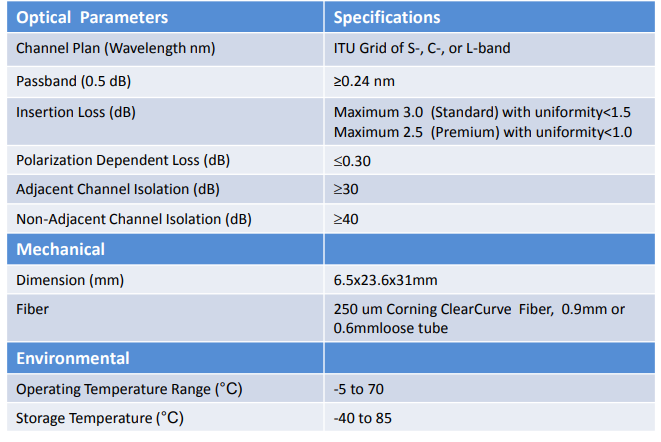

Mini 1x16 100GHz DWDM Devices
Description
Features
● Based thin film filter technology, free space, Temperature independent performance; Extremely compact and ultra-low insertion loss
Applications
● Mux or Demux, Combine/separate 16 Channels with 100/200GHz spacing where compact size or ultra-low insertion loss is required.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
