波分复用器
PWDM-T1550R1310/1490
Description
PWDM-T1550R1310/1490
Decriptions
PWDM-T1550R1310/1490 is used for packaging of optical module. It can realize the multiplexing of two communication signal 1550 and 1490/1310, which expands the capacity of single fiber and achieves bi-directional communication. It is widely used in optical network upgrade and expansion, or introduce new comprehensive business ( VATV, TELECOM, integration of three networks-PON+EOC)etc.
Features:
♦ Low insertion loss
♦ Low PDL
♦ High channel isolation
♦ Excellent environmental reliability
Application:
♦ WDM system
♦ CATV
Technical Index:
|
Type |
G-PWDM |
|
|
Operating wavelength T：transmission wavelength R：reflection wavelength |
nm |
T-1530~1620(center wavelength1550，optional wavelength1590，1610) R-1310±50 & 1490±10 |
|
T1550 R1310/1490 |
||
|
T1490 R1310/1550 |
||
|
Transmission insertion loss |
dB |
≤0.80≤0.20≤0.30≤0.10≤0.20≤0.30 |
|
Reflection insertion loss |
dB |
≤0.60 |
|
Transmission channel isolation |
dB |
≥30 |
|
Reflection channel isolation |
dB |
≥17 |
|
PDL |
dB |
≤0.1≤0.05≤0.05≤0.05≤0.10 |
|
Wavelength thermal stability |
nm/℃ |
≤0.003 |
|
Insertion loss thermal stability |
dB/℃ |
≤0.005 |
|
Directivity |
dB |
≥55 |
|
Return loss |
dB |
≥45 |
|
Operating temperature |
℃ |
-20~+70 |
|
Storage temperature |
℃ |
-40~+85 |
|
Note:Customization is available. |
||
Related Products
CWDM波分复用器
CWDM波分复用器，F-tone WDM-1000是北亿纤通为城域网应用而开发的粗波分复用(CWDM)传输系统，目前用G.652光缆可传输11个波长(1430nm-1610nm及 1310nm)，根据需要，可在CWDM波长中插入密集波分波长，在1530nm及1550nm附近插入DWDM的16个波长，组成粗波分和密集波分复用 系统(CWDM+DWDM)，简称F-tone WDM-1000系统。
OLP光线路保护设备,OLP干线保护方案
北亿纤通开发的OLP光线路保护设备外观采用1U高度设计，可安装于标准的19寸机柜中。此 OLP设备用于1+1光纤链路备份，它能在主光路发生故障的情况下，自动切换到备用光路，以维持光信号的传输。
OTU/TDM/OEO/WDM/EDFA/OLP综合业务传输平台
本系列产品是北亿纤通推出的新一代大容量、多业务接入的光网络平台，该平台具有业务集成度高，端口密度大，业务类型丰富，配置灵活等特点，且支持基于SNMP协议的图形化管理界面，为管理、维护提供非常清晰的故障定位，节省维护成本,广泛应用于电信运营商、广电、电力、教育以及信息安全等领域，面向全光网络，应用于国家、省际、省内干线，本地城域网以及各种专网的建设。具有传输信号独立透明，多路信号合波传输，节省光纤资源，安全可靠的特点，可帮助客户组建一个长距离、无阻断、高可靠、安全灵活、抗灾能力强的光传输网络。
2CH, 4CH, 8CH, 16CH CWDM modules
2CH, 4CH, 8CH, 16CH CWDM modules:F-tone Photonics offers a full range of CWDM Mux-Demux and Optical Add Drop Multiplexer (OADM) units to suit all kinds applications and network solutions. Some most common ones are: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV.

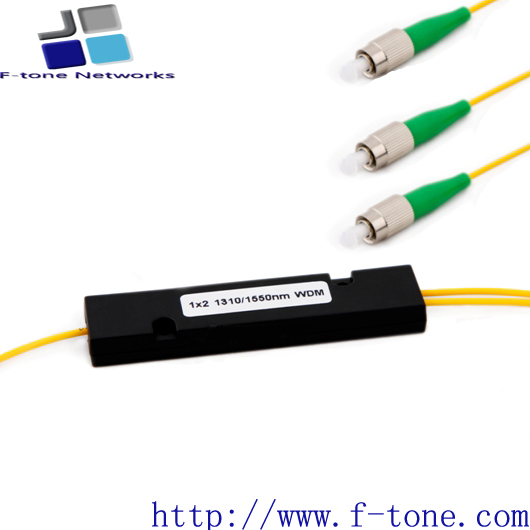

1310/1550 WDM, 980/1550 WDM
