Description
Polarization Beam Combiner/Splitter 980/1064nm
Features:
● Low insertion loss
● High extinction ratio
● High Return Loss
● Excellent environmental stability
and reliability
| Applications: ● Fiber Laser ● Fiber Sensor ● Communication System ● Test Instrumentations ● Polarization maintaining optical system |
 |
Compliance:
● Telcordia GR-1209-CORE
● Telcordia GR-1221-CORE
● RoHS

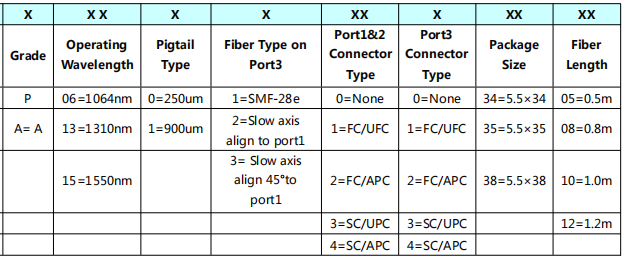

Ordering Information:FT-45-PBC&S
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
