S-Mini Optical Transmitter

Features
● Supper-Mini size ：31.3mm*17mm*10mm（L*W*H）
● Un-cooled（without TEC），low power consumption
● CWDM wavelength optional
● Wide operating frequency from 10MHz to 6GHz
● Flat frequency response
● Single +5V Power supply
● Have optical power monitoring function
● Automatic optical power control（APC）
● Broadband low noise amplifier（LNA） integrated（optional）
● Bias-T circuit integrated for power supply through the RF SMA connector（optional，see the schematic diagram below）
● RoHS compliant and CE certification
● Excellent EMI/EMC design

Applications
● WiMAX / 4G / 5G
● Satellite communications
● Mobile backhaul
● GPS signal transport
● All-Digital QAM network
● Data and video distribution
● Distributed antenna system

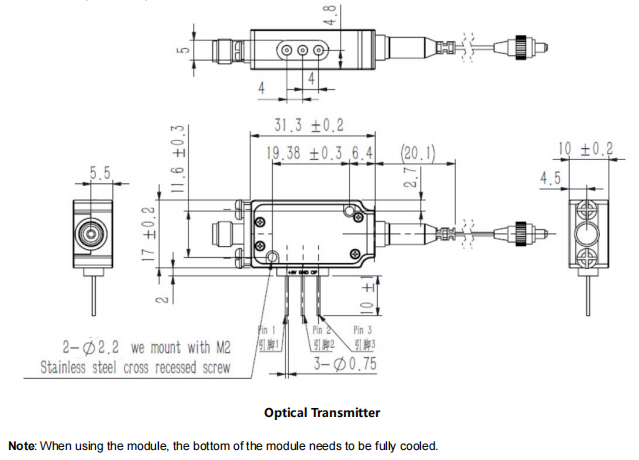

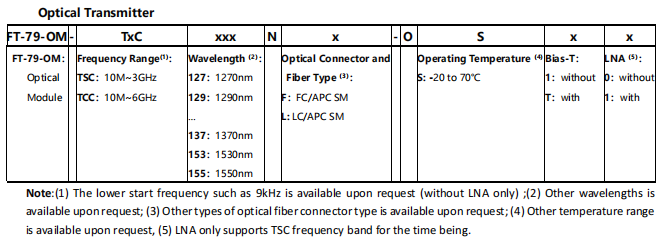

Mechanical (unit: mm)Ordering Information

注：本产品有全国产化型号可选

本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
