标准光模块
3GHz 大动态光收发模块
Description
3GHz 大动态光收发模块
特点
● 超宽的工作频段：10MHz~3GHz
● 波长支持 ITU-C 波段， 丰富 1550nm DWDM 波长可选
● 光接收模块集成 LNA(可选)
● 高输入 P-1dB：≥27dBm@1GHz
● 良好的线性指标：IIP3≥40dBm@1GHz
● 噪声良好：NF≤40dB@1GHz
● 平坦的带内波动：典型值±1.3dB
● 大动态：SFDR 最高达 125dB · Hz2/3
应用
● 天线拉远
● 保密通信
● 相控阵天线系统
● 分布式天线系统
● 电子对抗
● OFDM 光纤传输系统

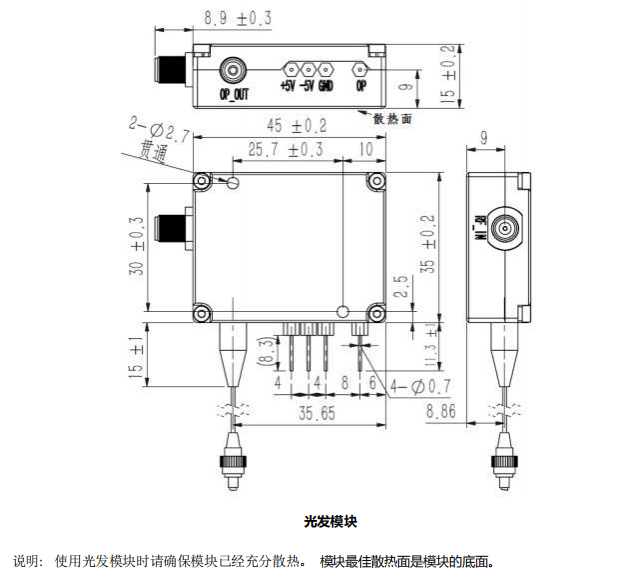

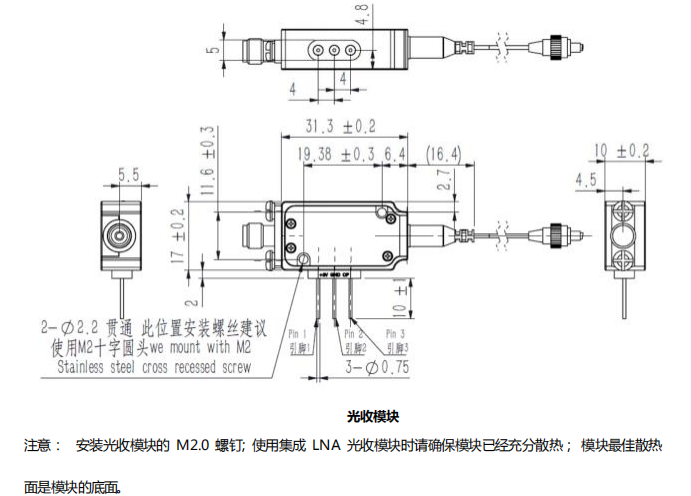

机械结构 ( 单位 : mm)
订购信息
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
