标准光模块
S-Mini 同轴模拟光收模块
Description
S-Mini 同轴模拟光收模块
特点
● 超迷你小体积：31.3mm*17mm*10mm（长*宽*厚）
● 低功耗
● 工作频率宽，最宽可从 10MHz 到 12GHz
● 平坦的频率响应
● 单电压+5V 供电
● 具有光收功率监控功能
● 集成宽带低噪声放大器（LNA）（可选）
● 优良的 EMI/EMC 设计
应用
● 5G/4G/3G/WiMAX 等天线拉远
● 卫星通信
● 北斗/GPS 信号传输
● 保密通信
● 光纤延迟线
● 分布式天线系统
● 宽带无线通信
● OFDM 光纤传输系统

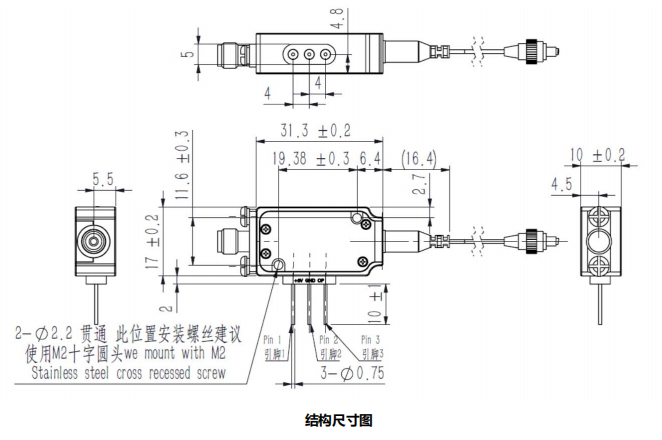

模块尺寸图 (unit: mm)

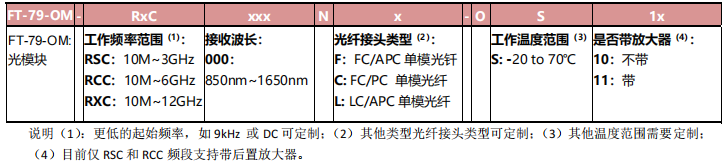

订购须知
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
