SFP BIDI Transceiver,3G-SDI,20/35/40km

Product Description
      F-tone Networks’s FTCS-Bxx3G-xxxx series of transceiver modulesare the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 3Gbps. The module is fully compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA).These transceiver modules provides the system designer with Camera, Video, HDTV/SDTV Fibre Channel applications.

Product Features
● DFB Laser Diode Transmitter
● Up to 40 Km on 9/125μm SMF
● 3.3V power supply
● LC duplex optical interface
● CML Differential Input/Output and LVTTL signal detect
● Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to+70℃)

Application
● SMPTE 259M/292M/424M Compliant Electrical-to-Optical Interfaces
● HDTV/SDTV Fibre Channel applications

Absolute Maximum Ratings
Operating of the transceiver beyond the Absolute Conditions Listed in Table 1 will degrade or damage the product. It’s not implied that the product would function above the recommended operating environment, it’s possible to reduce the reliability and lifetime of device if Recommended Operating Environment is exceeded (Refer to table 2)
Table 1--- Absolute Maximum Conditions

Table 2--- Recommended Operating Environment and Electrical Characteristics

Optical Parameters
Table 3--- FTCS-B133G-20xx Transceiver Optical Characteristics (Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 4--- FTCS-B153G-20xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 5--- FTCS-B133G-35xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Table 6--- FTCS-B153G-40xx Transceiver Optical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3±0.2V)

Note1 ：The optical power is launched into 9/125μm SMF.
Note2 ：With a PRBS 223-1 test pattern@ 3000Mbps ，The sensitivity of the Pathological Patterns≦-16.

Electrical Parameters
Table 7--- Transceiver Electrical Characteristics(Ambient Operating Temperature Ta=+25±5°C, VCC = 3.3 ±0.2V)

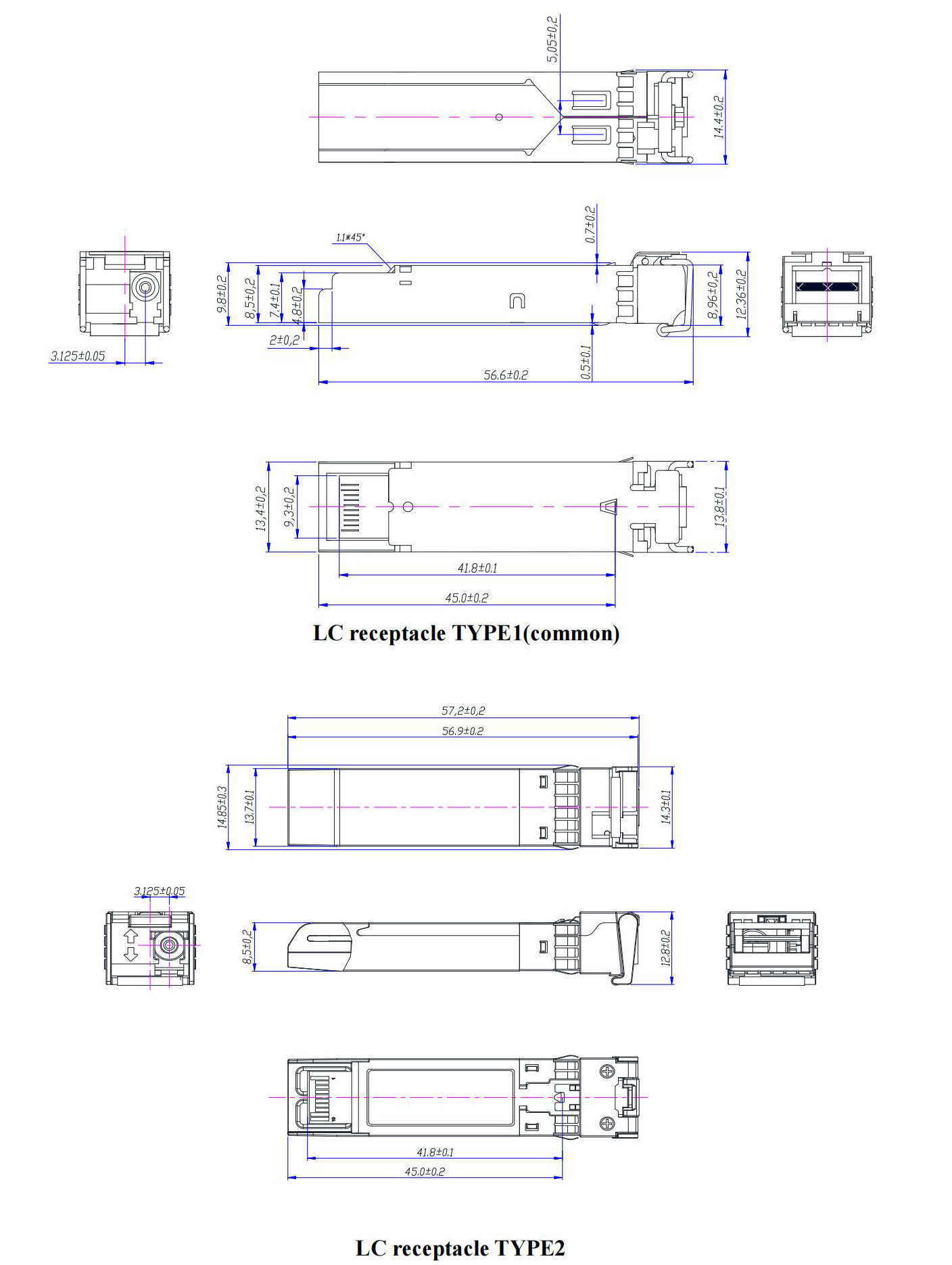

Module Outline Drawing（Units in mm)

Order Information

注：本产品有全国产化型号可选
本产品为Video SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
