12Gbps Single Mode SFP+ SDI Receiver (10Km)
Description
12Gbps Single Mode SFP+ SDI Receiver (10Km)
FEATURES
● SMPTE ST259, ST292, ST424, ST2081, ST2082.
● Hot-Pluggable SFP Footprint LC Optical Receiver
● Speed up to 12 Gb/s
● Distance up to 10 km for 12G-SDI
● Support Video Pathological Patterns for HD-SDI,
● 3G-SDI, 6G-SDI, and 12G-SDI
● Based on Industry Standard SFP +
● SFF-8472 Digital Diagnostic Function
● Single +3.3 V Power Supply
● RoHS 6/6 Compliant
● Operating case temperature:
FTCS-R1312G-10D : 0 ℃to 70℃
FTCS-R1312G-10DI : -40 ℃to 85℃
APPLICATIONS
● High-density Video Routers

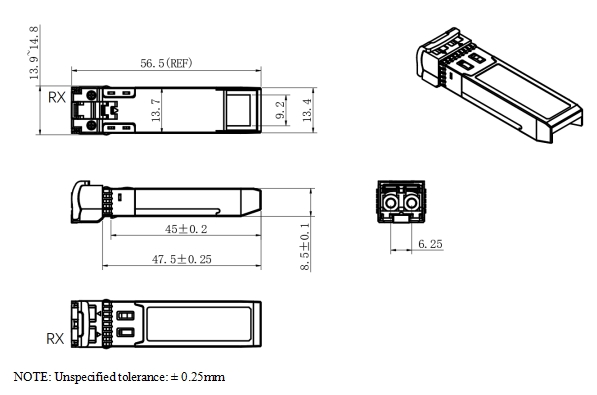

Mechanical Dimensions
Ordering Information
|
P/No. |
Package |
Bit Rate(Gb/s) |
Dist.(km) |
Volt.(V) |
RX Sens(dBm) |
Temp.(℃) |
|
FTCS-R1312G-10D |
LC |
11.88 |
10 |
3.3 |
-14.4 |
0 ~70 |
|
FTCS-R1312G-10DI |
LC |
11.88 |
10 |
3.3 |
-14.4 |
-40 ~85 |
注：本产品有全国产化型号可选
本产品为Video SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures,data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone before they become applicable to any particular order or contract. In accordance with the F-tone policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone or others. Further details are available from any F-tone sales representative.
