标准光模块
SFP Transceiver,MM,1310nm,155M,2km
Description
SFP Transceiver,MM,1310nm,155M,2km
Features
● Up to 155Mbps data rate
● 2Km Reach for 50/125um (550MHz.km)
● Duplex LC receptacle optical interface compliant
● Single +3.3V power supply
● DDMI function available with internally calibrated mode
● Hot-pluggable
● Receiver loss of signal output
● Transmitter disable input
● International Class1 laser safety certified
● Operating temperature range:
Commercial: -5°C~70°C
Industrial: -40°C~85°C
● RoHS Compliant
Application
● Gigabit Ethernet
● 1x Fiber Channel
● Switch to Switch Interface
● Other Optical Links
Standard
● Compliant with SFP MSA (INF-8074i)
● Compliant with SFF-8472
● Compliant with IEEE 802.3z
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Storage temperature |
TS |
-40 |
85 |
°C |
|
Power Supply Voltage |
VCC |
0 |
3.6 |
V |
|
Relative Humidity |
RH |
5 |
95 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Operating Case Temperature |
TC |
-5 |
70 |
°C |
FTCS-M1303-02D |
|
|
-40 |
85 |
FTCS-M1303-02DI |
||||
|
Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
|
|
Data Rate |
155 |
Mbps |
||||
|
Fiber Length 62.5/125μm core MMF (550MHz.km) |
2 |
Km |
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Total Supply Current |
ICC |
300 |
mA |
|||
|
Transmitter |
||||||
|
Transmitter Differential Input Voltage |
400 |
2400 |
mV |
|||
|
Tx_Fault Output Voltage - High |
VOH |
2.4 |
Vcc |
V |
LVTTL |
|
|
Tx_Fault Output Voltage - Low |
VOL |
0 |
0.4 |
V |
LVTTL |
|
|
Tx_Disable Input Voltage - High |
VIH |
2 |
Vcc |
V |
LVTTL |
|
|
Tx_Disable Input Voltage - Low |
VIL |
0 |
0.8 |
V |
LVTTL |
|
Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Input Differential Impedance |
90 |
100 |
110 |
Ω |
||
|
Receiver |
||||||
|
Receiver Differential Output Voltage |
600 |
1600 |
mV |
|||
|
LOS Output Voltage - High |
VOH |
2.4 |
Vcc |
V |
LVTTL |
|
|
LOS Output Voltage - Low |
VOL |
0 |
0.4 |
V |
LVTTL |
|
|
Output Differential Impedance |
90 |
100 |
110 |
Ω |
||
Optical Transmitter Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Average Output Power |
POUT |
-8 |
-3 |
dBm |
||
|
Center Wavelength |
λc |
1260 |
1310 |
1360 |
nm |
|
|
Spectral Width |
Δλ |
3.5 |
nm |
|||
|
Extinction Ratio |
ER |
9 |
dB |
|||
|
Transmitter OFF Power |
POFF |
-45 |
dBm |
|||
|
Jitter P-P |
TJ |
0.1 |
UI |
|||
|
Output Eye Diagram |
Complies with IEEE 802.3z |
|||||
Optical Receiver Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
Center Wavelength |
λc |
1260 |
1610 |
nm |
||
|
Receiver Sensitivity |
PSEN |
-32 |
dBm |
1 |
||
|
Input Saturation Power (Overload) |
PSAT |
-3 |
dBm |
|||
|
LOS De-assert Level |
LOSD |
-33 |
dBm |
|||
|
LOS Assert Level |
LOSA |
-39 |
dBm |
|||
|
LOS hysteresis |
HYS |
0.5 |
6 |
dB |
Note 1. Measured with PRBS27-1 pattern, @1.25Gbps, ER=9dB, BER=1x10-12 .

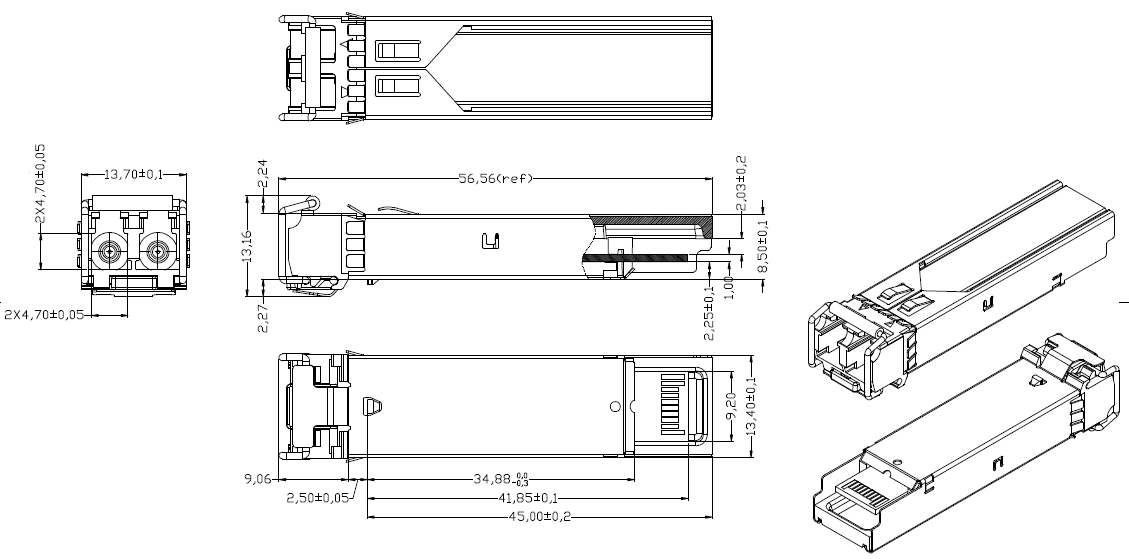

Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
Ordering Information
|
Part Number |
Specifications |
|||||
|
Package |
Data Rate (Mbps) |
Wavelength(nm) |
Temperature(°C) |
Reach(km) |
DDM |
|
|
FTCS-M1303-02D |
SFP |
155 |
1310 |
-5~70 |
2km |
Y |
|
FTCS-M1303-02DI |
SFP |
155 |
1310 |
-40~85 |
2km |
Y |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选
本产品为FT-WL系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
