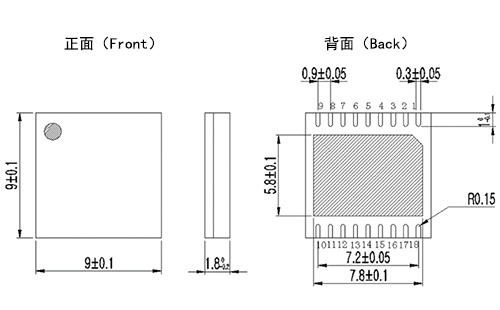

微封装锁相源SiP模块（9x9x1.8型）
Description
产品特点
● 细步进
● 低相噪
● 低杂散
● 体积小
● 气密性好
● 可靠性高
典型应用
● 航空
● 机载
|
电性能参数（TA=+25℃，Vdd=+5V，输出频率1GHz条件下） |
||||
|
参数名称 |
单位 |
最小值 |
典型值 |
最大值 |
|
输出频率 |
MHz |
32 |
- |
4100 |
|
测试频率点 |
MHz |
- |
1000 |
- |
|
输出功率 |
dBm |
- |
0 |
- |
|
谐波抑制 |
dBc |
- |
- |
-35 |
|
杂波抑制 |
dBc |
- |
- |
-75 |
|
工作电流 |
mA |
- |
212 |
- |
|
相位噪声（fm=1KHz） |
dBc/Hz |
- |
- |
-120 |
|
相位噪声（fm=10KHz） |
dBc/Hz |
- |
- |
-123 |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
