1、型号
(1)插头组件:FT-BC-T4SN- FT-BC-T4SN -1KM
型号说明:两端为FT-BC-T4SN四芯水密插头,使用φ6四芯单模水密光缆,光缆总长1KM。
(2)插座组件:FT-BC-Y4PN-4LC-0.5M
型号说明:一端为FT-BC-Y4PN四芯水密插座,使用φ0.9mm单模单芯光缆,光缆总长0.5M。
2、产品功能
该光缆组件用于传输4路1310nm、1550nm波长光信号。
3、光缆组件外形及尺寸

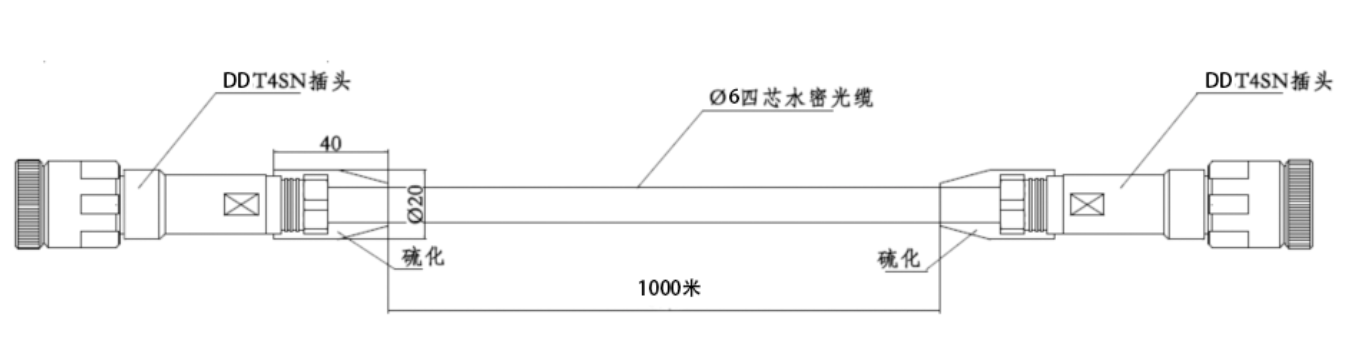

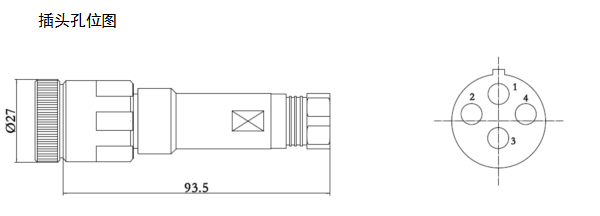

插头组件:FT-BC-T4SN-FT-BC-T4SN-1KM外形图

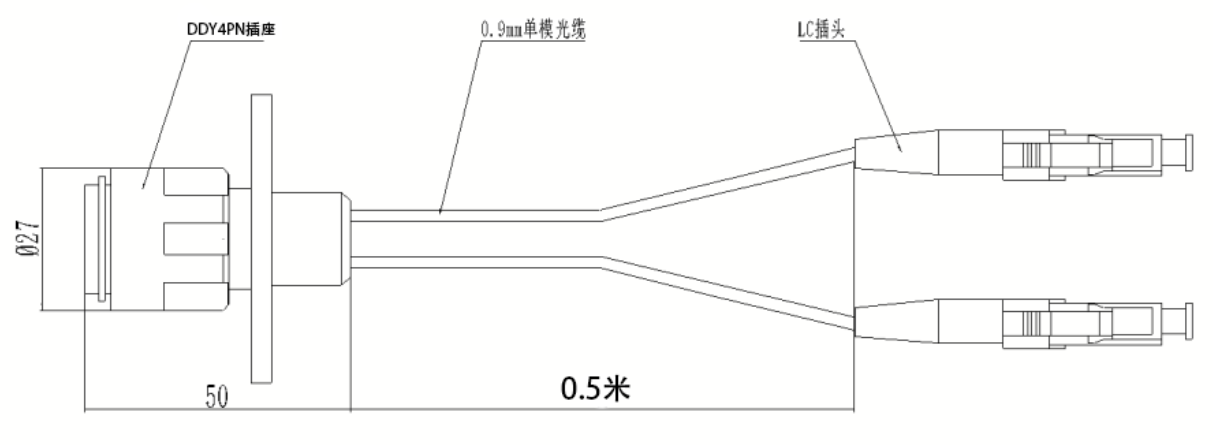

②插座组件:FT-BC-Y4PN-4LC-0.5M

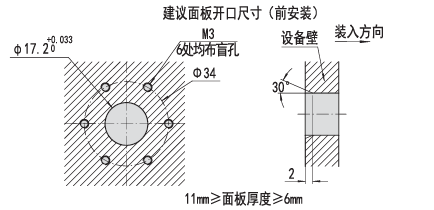

③插座安装尺寸
项目 |
参数 |
传输模式 |
单模 |
工作波长 |
1310nm、15850nm |
插入损耗 |
≤1dB |
耐水压 |
可定制 |
振动 |
频率10~2000Hz,加速度147 m/s2 |
冲击 |
峰值加速度980m/s2 |
机械耐久性 |
≥500次 |
工作温度 |
-40℃~+85℃ |

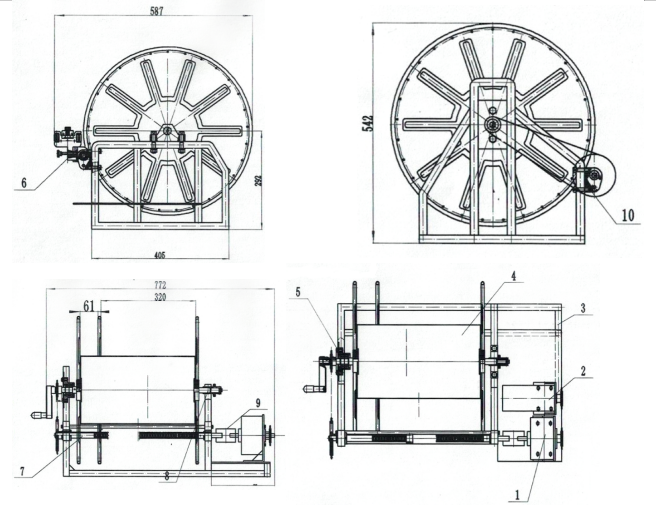

5、电动光缆绕线车
注:本产品有全国产化型号可选
