0~10Mbps 2×5 SFF TTL MM Transceiver Module
Description
0~10Mbps 2×5 SFF TTL MM Transceiver Module
Product Description
FLAF-M1300-02xx series of transceiver modules are the perfect solution for Low-speed communication networks.FLAF-M1300-02xx Small Form Factor (SFF) transceivers comply with the 2×5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FLAF-M1300-02xx SFF transceivers support data rates up to 10Mbps.
FLAF-M1300-02xx SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm wavelength Laser Transmitter
● Up to 2Km on 62.5/125μm MMF
● Single 3.3V power supply
● Standard 2×5 pin footprint (MSA Compliant)
● Operating Temperature Range
Standard : 0 to +70°C
Industrial : -40 to +85°C
● Duplex LC connector
● TTL Signal Input / Output
● TTL Signal Detect
● Low power dissipation
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Fiber System

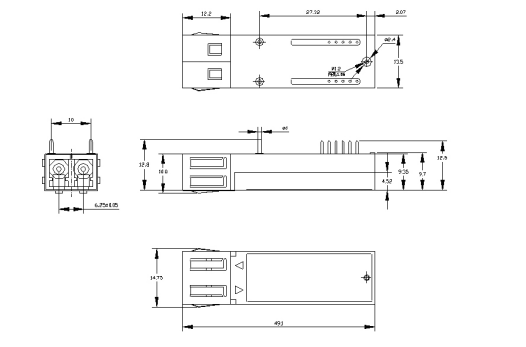

SFF Outline Drawing
Ordering information
|
Part number |
Operating Case temperature |
|
FLAF-M1300-02 |
SFF, DC 0~10M, MM F, 1310(FP) 2KM, 0 to +70°C |
|
FLAF-M1300-02I |
SFF, DC 0~10M, MM F, 1310(FP) 2KM, -40 to +85°C |
注：本产品有全国产化型号可选
本产品为FLAF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
