FTRC 10G transceiver modules

Product Description
F-tone'S FTRC-XX1X series of transceiver modules are the perfect solution for high -speed communication networks. These transceiver modules support data rates up to 10.5Gbps. The module is fully compliant with Small Form-Factor Transceiver. These transceiver modules provides the system designer with Telecom, Datacom, and other Fibre Channel applications

Product Features
● VCSEL/DFB Laser Diode Transmitter
● Distance up to 300m at MM Fiber
      300m links with OM3 MMF Cables
      82m links with OM2 MMF Cables
      33m links with OM1 MMF Cables
● Up to 20 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● (LV)PECL/CML Differential Inputs 、CML Differential Outputs and ( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● High-speed Storage Area Networks
● Other optic links

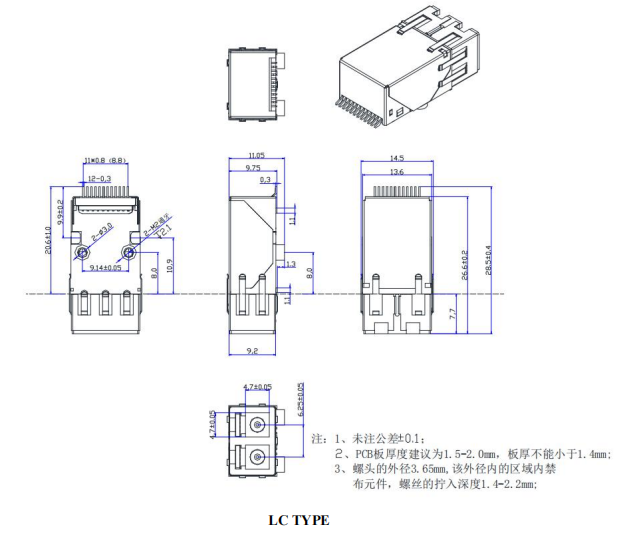

Module Outline Drawing（Units in mm)

本产品为FTRC系列，仅展示部分参数，如有需要，请联系我们。
