100G-ER1-40km QSFP28光模块
Description
100G-ER1-40km QSFP28光模块
产品描述
F-tone Networks 100G ER1-40km QSFP28光模块，100G QSFP28 ER1-40（FTQ2-HG-ER1xx）设计用于单模光纤（SMF）上长达40km的100千兆以太网链路。它符合QSFP28 MSA、100G Lambda 100G ER1-40和CAUI-4（无FEC）1。数字诊断功能可通过I2C接口获得，如QSFP28 MSA所规定。
该模块包含1通道光信号，中心波长1311nm，以100Gbps数据速率运行。该模块可以将4路25Gbps（NRZ）电输入数据转换为1路100Gbps（PAM4）光信号，还可以将1路100GbpsPAM4光信号转换为4路25GbpsNRZ电输出数据。电气接口使用38触点边缘型连接器。光学接口使用双工LC连接器。高性能冷却EML发射器和高灵敏度PIN接收器为长达40km链路的100GB以太网应用提供了卓越的性能。
产品特征
● 符合100G Lambda MSA 100G ER1-40
● 全双工收发器模块
● 4x25.78125Gbps NRZ电气接口（CAUI-4）
● 基于冷却EML TOSA发射机的106.25Gbps PAM4
● 106.25Gbps PAM4 APD接收器
● 4W最大功耗
● 可热插拔QSFP28外形尺寸
● 带KP-FEC的G.652 SMF上的最大链路长度为40km
● 双工LC插座
● 内置数字诊断功能
● 单路3.3V电源
● 符合RoHS（无铅）
● 外壳工作温度
商用：0~+70℃
工业：-40～+85℃
应用
● 100G Lambda 100G ER1-40

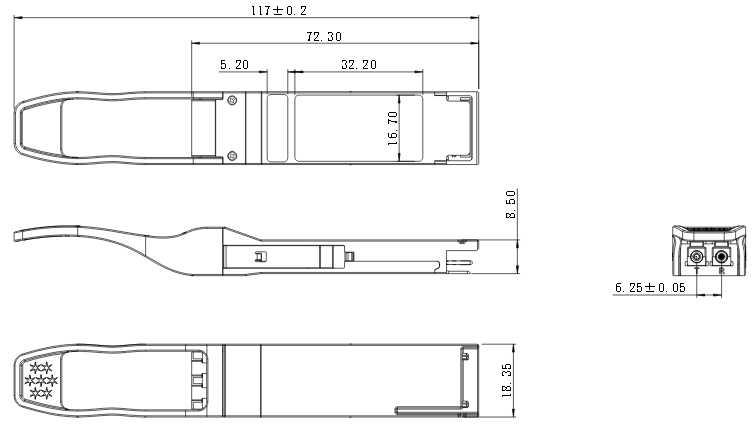

机械尺寸
订购信息
|
产品型号 |
产品参数 |
|
FTQ2-HG-ER1 |
QSFP28 ER1-40, 106.25Gb/s, 40km, EML+APD, SMF, Dual LC,0 ~ +70℃ |
|
FTQ2-HG-ER1I |
QSFP28 ER1-40, 106.25Gb/s, 40km, EML+APD, SMF, Dual LC,-40 ~ +85℃ |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
