0~50Mbps DWDM MINISFF SM Transceiver (80Km)
Description
0~50Mbps DWDM MINISFF SM Transceiver (80Km)
FEATURES
● All metal body, screw mounting
● Cooled DWDM Directed Modulation DFB Laser
● Wavelength controlled within ± 0.4nm over life and temperature
● 2-Fiber MiniSFF LC Transceiver
● DC~50Mbps Data Rate
● Ultra low jitters
● LVPECL Inputs & Outputs
● Single 3.3V Power Supply
● Operating case temperature: -45℃ to 80℃
● RoHs Compliance
APPLICATIONS
● Low Rate Bus transmission
● Unbalanced Signal transparent transmission

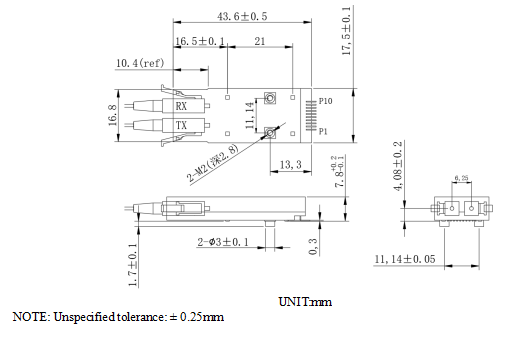

Outline Specification
Ordering Information
FTMF-DxxLB-80I XX: 100GHZ ITU Grid Wavelength
|
Central Wavelength (nm) |
Frequency (THZ) |
|
1528.77 |
196.1 |
|
1529.55 |
196.0
|
|
1530.33 |
195.9 |
|
1531.12 |
195.8 |
|
1531.90 |
195.7 |
|
1532.68 |
195.6 |
|
1533.47 |
195.5 |
|
1534.25 |
195.4 |
|
1535.04 |
195.3 |
|
1535.82 |
195.2 |
|
1536.61 |
195.1 |
|
1537.40 |
195.0 |
|
1538.19 |
194.9 |
|
1538.98 |
194.8 |
|
1539.77 |
194.7 |
|
1540.56 |
194.6 |
|
1541.35 |
194.5 |
|
1542.14 |
194.4 |
|
1542.94 |
194.3 |
|
1543.73 |
194.2 |
|
1544.53 |
194.1 |
|
1545.32 |
194.0 |
|
1546.12 |
193.9 |
|
1546.92 |
193.8 |
|
1547.72 |
193.7 |
|
1548.51 |
193.6 |
|
1549.32 |
193.5 |
|
1550.12 |
193.4 |
|
1550.92 |
193.3 |
|
1551.72 |
193.2 |
|
1552.52 |
193.1 |
|
1553.33 |
193.0 |
|
1554.13 |
192.9 |
|
1554.94 |
192.8 |
|
1555.75 |
192.7 |
|
1556.55 |
192.6 |
|
1557.36 |
192.5 |
|
1558.17 |
192.4 |
|
1558.98 |
192.3 |
|
1559.79 |
192.2 |
|
1560.61 |
192.1 |
|
1561.42 |
192.0 |
|
1562.23 |
191.9 |
|
1563.05 |
191.8 |
|
1563.86 |
191.7 |
注：本产品有全国产化型号可选
本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
