1×9 1.25Gbps BIDI CWDM Transceiver Module

Product Description
F-tone’s FTTR-BCxx12-xxxx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.25Gbps. The module is fully compliant with the Multi-sourced 1x9 protocol.
These single fiber Bi-Directional transceiver modules provides the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate for communications.

Product Features
● CWDM Laser Diode Transmitter
● Up to 100 Km on 9/125μm SMF
● 3.3V, 5V, 3.3V/5.0V power supply
● SC/ST/FC single optical interface
● (LV)PECL Differential Inputs and Outputs and (LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● Gigabit Ethernet
● Fiber channel
● Digital video transmission system
● Other Optic Link

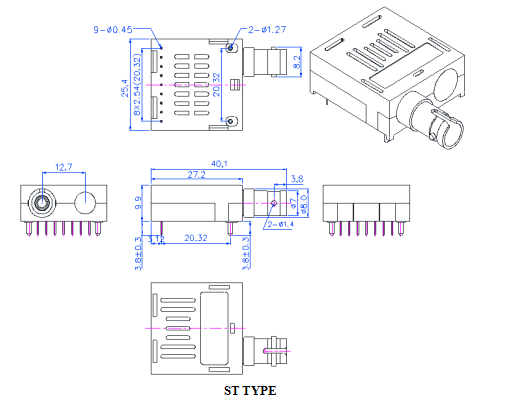

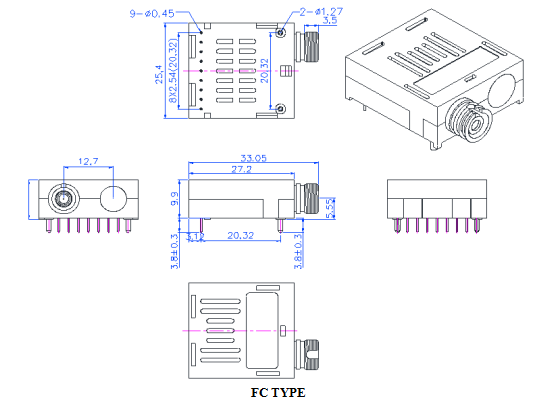

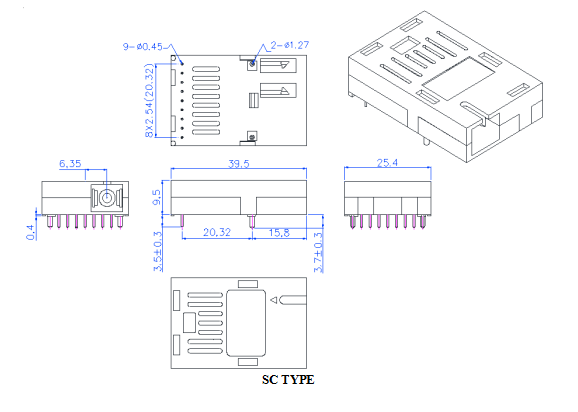

Module Outline Drawing

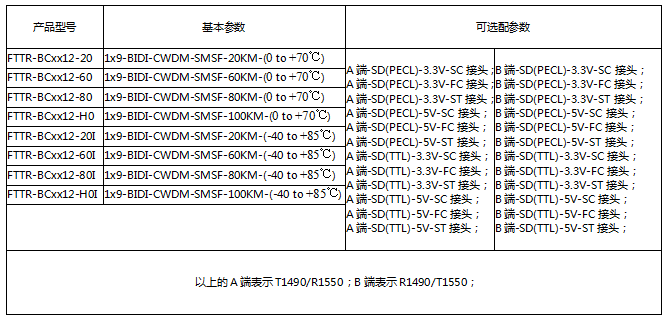

Ordering information

注：本产品有全国产化型号可选

本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
