100GE CWDM4 2km QSFP28 Optical Transceiver
Description
Description
The F-tone Networks 100GE CWDM4 2km QSFP28 optical transceiver (FTQ2-HG-CWDM4-02xx) is designed for use in 100-Gigabit Ethernet links up to 2km on Single Mode Fiber (SMF). It is compliant with the QSFP28 MSA, CWDM4 MSA and relevant portions of IEEE 802.3bm. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA. It converts 4 input channels of 25.78125Gb/s electrical data to 4 channels of CWDM optical signals and then multiplexes them into a single channel for 103.125Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 103.125Gb/s optical input into 4 channels of CWDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 CWDM channels are 1271nm, 1291nm, 1311nm and 1331nm as members of the CWDM wavelength grid defined in CWDM4 MSA.
Features
● Hot-pluggable QSFP28 form factor
● 4 channels full-duplex transceiver module
● Supports 103.125Gb/s aggregate bit rate
● 4 channels DFB-based CWDM uncooled transmitter
● 4 channels PIN ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 3.5W maximum power dissipation
● Maximum link length of 2km on SMF with KR4 FEC
● Duplex LC receptacle
● Single 3.3V power supply
● RoHS-6 compliant (lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 100GE CWDM4 applications with FEC

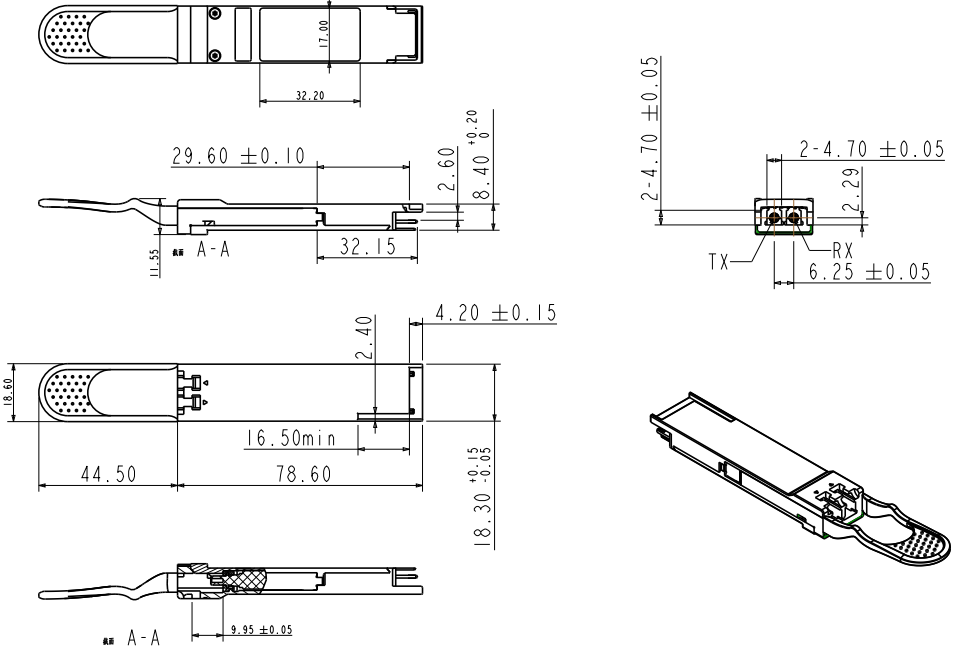

Mechanical Dimensions
Ordering Information
|
Product Description |
Part Number |
|
QSFP28 CWDM4, 103.125Gb/s, 1310nm, 2km, SMF, LC, 0 ~ +70℃ |
FTQ2-HG-CWDM4-02 |
|
QSFP28 CWDM4, 103.125Gb/s, 1310nm, 2km, SMF, LC, -40 ~ +85℃ |
FTQ2-HG-CWDM4-02I |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
