标准光模块
10.3125Gbps 双收光模块
Description
10.3125Gbps 双收光模块
FEATURES
● Support rates up to 11.3Gb/s
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Hot-Pluggable SFP+ Footprint LC Optical Transceiver
● Distance up to 10 km
● PIN photo-detector
● Single +3.3 V Power Supply
● ROHS Compliant
● Operating Temperature:
FTCS-2RCxxxx1X-10D : 0℃~+70℃
FTCS-2RCxxxx1X-10DI : -40℃~+85℃
APPLICATIONS
● Fiber Channel
● Switch to switch interface
● Other Optical Links

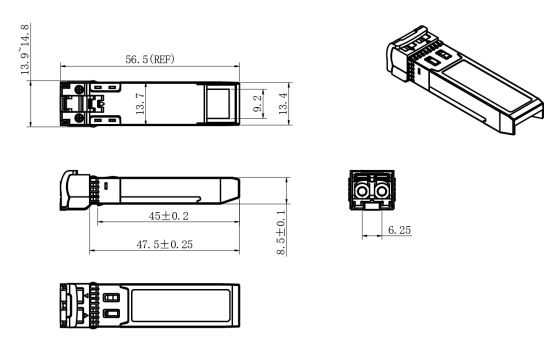

Mechanical Specifications
Ordering information
|
P/No. |
Package |
Bit Rate(Gb/s) |
Dist.(km) |
Volt.(V) |
RX1 Sens(dBm) |
RX2 Sens(dBm) |
Temp.(℃) |
DDM |
|
FTCS-2RCxxxx1X-10D |
LC |
10.3125 |
10 |
3.3 |
-14.4 |
-14.4 |
0~70 |
YES |
|
FTCS-2RCxxxx1X-10DI |
LC |
10.3125 |
10 |
3.3 |
-14.4 |
-14.4 |
-40~85 |
YES |
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
