10Gbps 220m Multi Mode Datacom SFP+ Transceiver

Product description
F-tone Networks’ SFP+ LRM is an optical transceiver module for transmission at 1310nm over legacy multi mode fiber. Supporting 10GBASE-LRM Ethernet standard make it ideally suited for 10G datacom. Its very low power consumption and its excellent EMI performance allow system design with high port density. The small form factor integrates a 1310nm Fabry-Perot (FP) laser in an LC package and a linear multimode PIN receiver. F-tone Networks module is lead free, RoHS compliant and is designed and tested in accordance with industry safety standards.
The F-tone Networks FTCS-M131X-02DXX SFP+ transceiver is a linear-interface transceiver that enables, in conjunction with an Electronic Dispersion Compensation (EDC) on the host board, an IEEE802.3aq 10GBASE-LRM compliant link. The host board EDC provides correction for the severe modal dispersion that may occur during propagation through multimode fiber links, including legacy installed FDDI multimode fiber (see IEEE802.3aq for detailed information regarding fiber coverage).

Features
● Supports Up to 10.3Gbps bit rates
● Transmission distance up to 220m (OM1 fiber)
● Hot Pluggable SFP+ footprint
● 1310nm FP transmitter, PIN photo-detector
● Digital Status monitoring Interface
● Duplex LC connector
● RoHS compliant and Lead Free
● Metal enclosure for lower EMI
● Single 3.3V power supply
● Power dissipation < 1W
● Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472
● Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C

Applications
● 10GBASE-LRM 10G Ethernet
● Legacy FDDI multimode links

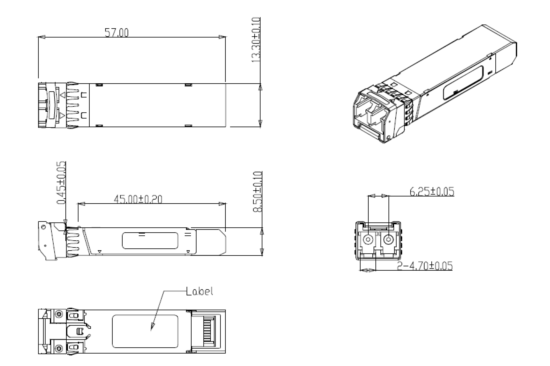

Mechanical Specifications

Ordering information

注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
